26-1009LF & 26-1009BLF Lead Free 1/4 Turn Supply Valve 1/2 SWT X 3/8 OD Compression

Valve Catalog

26-1009LF & 26-1009BLF Lead Free 1/4 Turn Supply Valve 1/2 SWT X 3/8 OD Compression

• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Angle
• Temp. Rating: 32°F - 160°F
• 1/2" Sweat x 3/8" OD Compression

26-1009BLF
• Same as Above - Unplated Brass

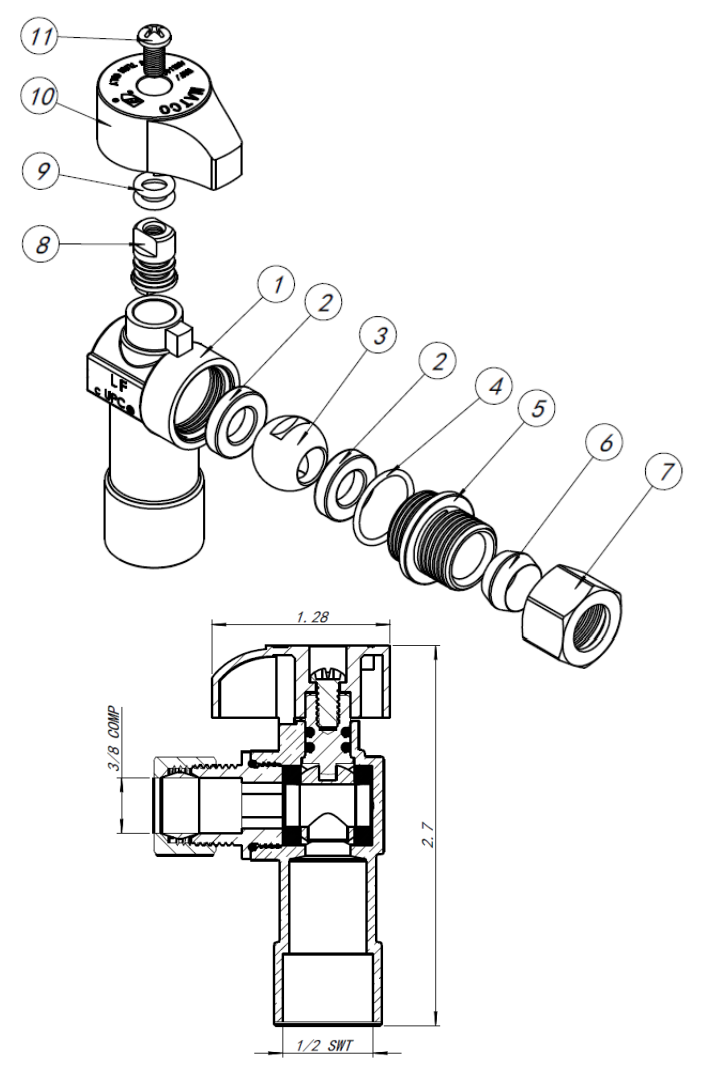

No. Part Material QTY
1 Body Brass LF 1
2 Packing PTFE 2
3 Ball Brass LF 1
4 O-Ring NBR 1
5 Outlet Nut Brass LF 1
6 Sleeve Brass LF 1
7 Packing Nut Brass 1
8 Stem Brass 1
9 O-Ring NBR 2
10 Handle Zinc Alloy 1
11 Bolt  FE 1
