26-1003PXLF Lead Free 1/4 Turn PEX Angle Supply Valve 1/2 PEX X 3/8 OD Compression

26-1003PXLF Lead Free 1/4 Turn PEX Angle Supply Valve 1/2 PEX X 3/8 OD Compression

• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Angle
• Temp. Rating: 32°F - 160°F
• 1/2" PEX x 3/8" OD Compression

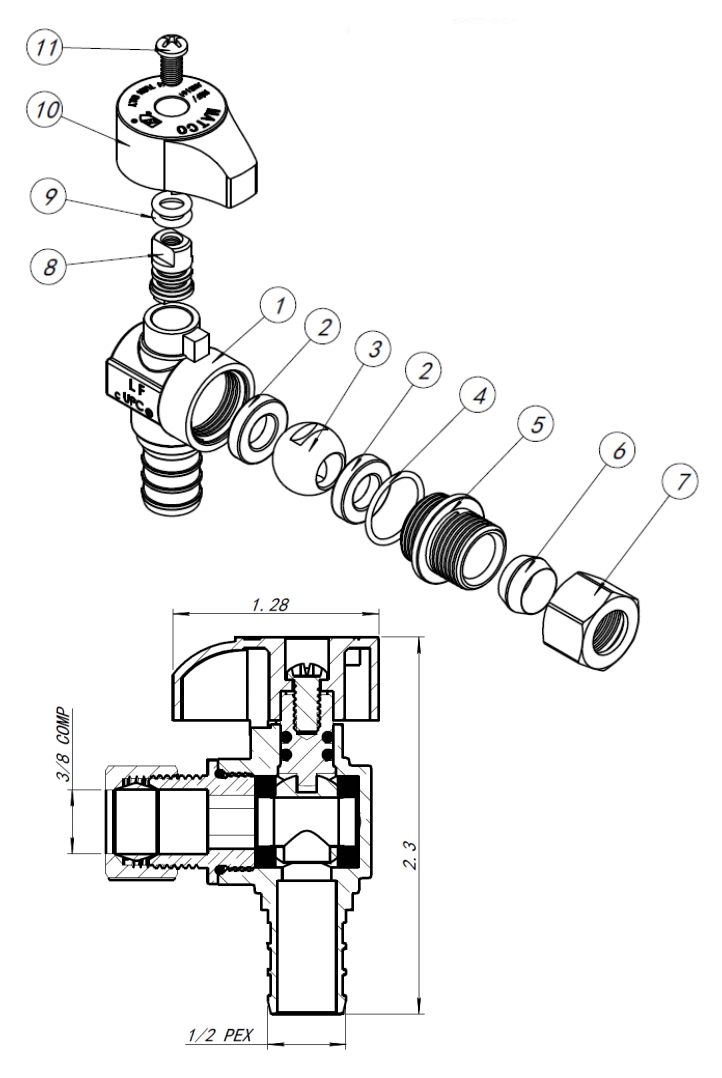

Material Specifications

No. Part Material QTY
1 Body Brass LF 1
2 Packing PTFE 2
3 Ball Brass LF 1
4 O-Ring NBR 1
5 Outlet Nut Brass LF 1
6 Sleeve Brass LF 1
7 Packing Nut Brass 1
8 Stem Brass 1
9 O-Ring NBR 2
10 Handle Zinc Alloy 1
11 Bolt  FE 1
