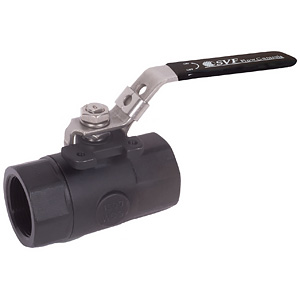

25CSTHM Carbon Steel Threaded Ball Valve - Two Piece W/ Mounting Pad

25CSTHM Carbon Steel Threaded Ball Valve - Two Piece W/ Mounting Pad

• Reduced Port
• Two Piece
• 150 lb. WSP
• W.P. 1/4”-1” -2000 WOG
          1-1/4” -2” 1500 WOG
• W.T. -4°F -392°F
• Investment Casting
• Blow-out Proof Stem
• Locking Handle
• Thread Type: ASTM B1.20.1 (NPT)
• Sizes 1/4” - 2”

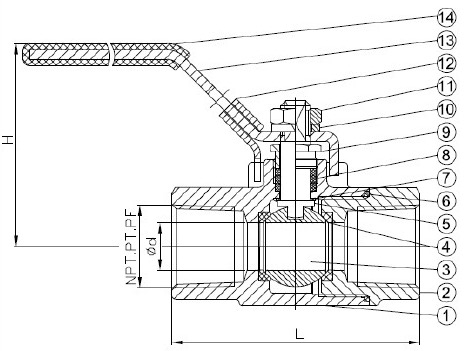

Material Specifications

No. Part Material
1 Body Carbon Steel
2 Cap Carbon Steel
3 Ball Carbon Steel
4 Seat R.PTFE
5 Stem Stainless Steel 316
6 Gasket R.PTFE
7 Thrust Washer R.PTFE
8 Packing R.PTFE
9 Gland Stainless Steel 304
10 Spring Washer Stainless Steel 304
11 Stem Nut Stainless Steel 304
12 Locking Device Stainless Steel 304
13 Handle Stainless Steel 304
14 Cover Plastic

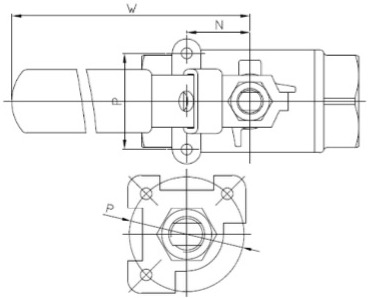

Dimensions

Part # Size d L H W N P Torque N.M Weight (lb)
25CSTH01M 1/4” 0.43 2.27 2.21 4.02 0.49 1.12 6.9 0.73
25CSTH02M 3/8” 0.43 2.27 2.21 4.02 0.49 1.12 9.2 0.66
25CSTH03M 1/2” 0.50 2.36 2.21 4.02 0.49 1.12 12.7 0.68
25CSTH04M 3/4” 0.59 3.11 2.56 4.85 0.91 1.38 16.1 1.17
25CSTH05M 1” 0.79 3.35 2.68 4.85 0.91 1.38 20.7 1.59
25CSTH06M 1-1/4” 0.99 4.10 3.15 6.03 - Ø1.97 32.2 2.80
25CSTH07M 1-1/2” 1.26 4.33 3.59 6.03 - Ø1.97 51.8 3.84
25CSTH08M 2” 1.50 5.40 3.86 7.21 - Ø1.97 59.8 4.67
