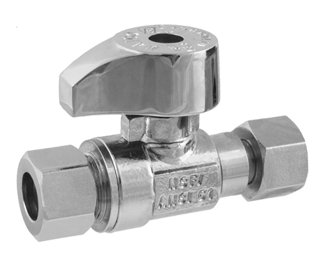

25-2000LF Lead Free 1/4 Turn Straight Supply Valve Retro-Fit 3/8 OD Captured Nut X 3/8 OD Comp
25-2000LF Lead Free 1/4 Turn Straight Supply Valve Retro-Fit 3/8 OD Captured Nut X 3/8 OD Comp
• Chrome Plated Lead Free Brass
• UPC & NSF Approved
• 125 PSI
• Straight
• Retro-Fit
• 3/8" OD Captured Nut x 3/8" OD Compression
.png)

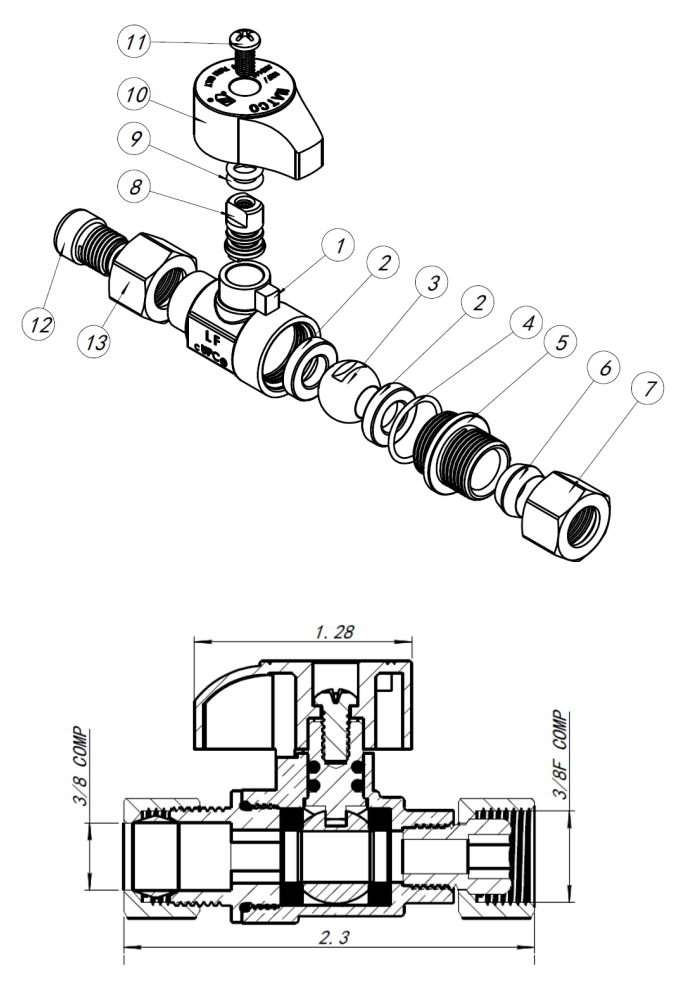

Material Specifications
| No. | Part | Material | QTY | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Body | Brass LF | 1 | ||||||
| 2 | Packing | PTFE | 2 | ||||||
| 3 | Ball | Brass LF | 1 | ||||||
| 4 | O-Ring | NBR | 1 | ||||||
| 5 | Outlet Nut | Brass LF | 1 | ||||||
| 6 | Sleeve | Brass LF | 1 | ||||||
| 7 | Packing Nut | Brass | 1 | ||||||
| 8 | Stem | Brass | 1 | ||||||
| 9 | O-Ring | NBR | 2 | ||||||
| 10 | Handle | Zinc Alloy | 1 | ||||||
| 11 | Bolt | FE | 1 | ||||||
| 12 | Connect | Brass LF | 1 | ||||||
| 13 | Packing Nut | Brass | 1 | ||||||
