240 Brass Angle Globe Valve

Downloads:

Valve Catalog

240 Brass Angle Globe Valve

• ISO 9002
• 200 PSI CWP
• Angle Control Valve
• Brass Body
• Brass Cross Handle
• Globe Pattern
• FIP 3/4" - 2"

240H - Valve Available with Bronze Wheel Handle

Click Here For Lead Free


Material Specification

No. Part ASTM Material Designation
1 Wheel Nut Hot Rolled SAE 1010R
2 Name Plate Aluminum A1100
3 Handwheel Bronze B584 C84400
3 Cross Handle Brass B584 C85710
4 Packing Nut Brass B584 C85710
5 Gland Packing Rubber (NBR) SAE No 1052
6 Bonnet Brass B584 C85710
7 Stem Brass B584 C85711
8 Seat Holder Brass B584 C85712
9 Seal Packing Rubber (NBR) SAE No 1052
10 Washer Brass B16 C36000
11 Seat Nut Brass B16 C36000
12 Body Brass B584 C85710

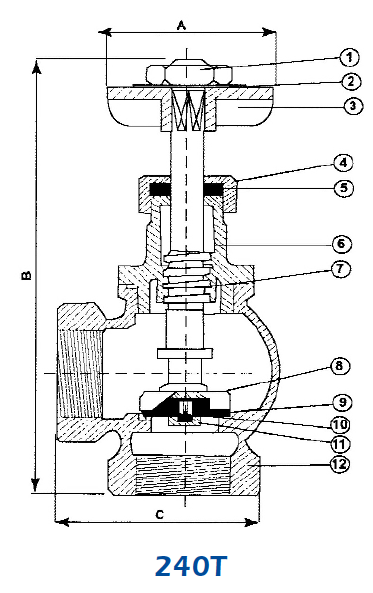

240T Dimensions

Part # Size A B C
240T04 3/4" 1.64 4.98 2.17
240T05 1" 1.64 5.49 2.58
240T06 1-1/4" 1.73 7.01 3.23
240T07 1-1/2" 1.73 7.64 3.62
240T08 2" 1.73 8.74 4.25

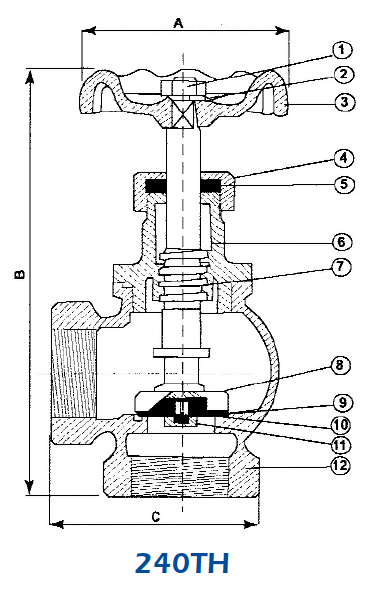

240TH Dimensions

Part # Size A B C
240T08H 2" 4.33 8.86 4.25
