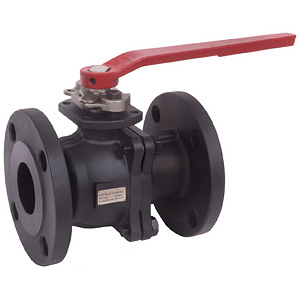

20CSFLD Carbon Steel Flanged Ball Valve - Two Piece

• Full Port
• Two Piece
• 150 lb. WSP
• W.P. ANSI Class 150
• W.T. -4°F -392°F
• Investment Casting
• Blow-out Proof Stem
• 1/16” Raised Face Flanged
• Locking device
• ASME B16.34
• Sizes 1/2” - 6”


 Material Specifications

No. Part Material
1 Body Carbon Steel
2 Cap Carbon Steel
3 Solid Ball Stainless Steel 304
4 Seat R.PTFE
5 Stem Stainless Steel 304
6 Gasket R.PTFE
7 Thrust Washer R.PTFE
8 Packing R.PTFE
9 Stem Packing R.PTFE
10 Gland Stainless Steel 304
11 Gland Bolt Stainless Steel 304
12 Handle Carbon Steel
13 Stopper Stainless Steel 304
14 Snap Ring Stainless Steel 304
15 Bolt Stainless Steel 304
16 Handle Bolt Stainless Steel 304
17 Cover Plastic

 Dimensions

Part # Size Ød D C G T N-ØM L H W W1 J ISO 5211 E Ma Torque N-M Weight (lb)
20CSFL03D 1/2” 0.59 3.51 2.38 1.38 0.48 4-Ø0.63 4.26 2.76 6.30 0.47 1.97 F04 1.65 M5 16.1 3.99
20CSFL04D 3/4” 0.79 3.86 2.76 1.69 0.48 4-Ø0.63 4.61 2.88 6.30 0.47 1.97 F04 1.65 M5 20.7 4.76
20CSFL05D 1” 0.99 4.26 3.13 2.01 0.48 4-Ø0.63 5.00 3.03 6.30 0.47 1.97 F04 1.65 M5 25.3 6.22
20CSFL06D 1-1/4” 1.26 4.61 3.53 2.52 0.50 4-Ø0.63 5.52 3.35 6.30 0.47 1.97 F05 1.97 M6 28.8 8.25
20CSFL07D 1-1/2” 1.58 5.00 3.88 2.88 0.56 4-Ø0.63 6.50 4.10 7.33 0.67 2.44 F07 2.76 M8 33.4 12.94
20CSFL08D 2” 1.97 5.99 4.75 3.62 0.63 4-Ø0.75 7.01 4.49 7.33 0.67 2.44 F07 2.76 M8 39.1 19.29
20CSFL09D 2-1/2” 2.56 7.01 5.50 4.14 0.69 4-Ø0.75 7.49 5.59 12.77 0.83 2.96 F07 2.76 M8 57.5 28.88
20CSFL10D 3” 3.15 7.49 6.01 5.00 0.75 4-Ø0.75 8.00 6.03 12.77 0.83 2.96 F10 4.02 M10 86.3 39.02
20CSFL11D 4” 3.94 9.02 7.51 6.19 0.94 8-Ø0.75 9.02 6.54 12.77 0.83 2.96 F10 4.02 M10 115 62.39
20CSFL13D 6” 5.91 10.99 9.52 8.51 1.00 8-Ø0.87 15.52 9.73 29.55 0.95 3.51 F12 4.93 M12 310 144.84
