207 Hose Bibb- No Kink
207 Hose Bibb- No Kink
• 125 WOG
• Hose Bibb-No Kink
• Brass Body
• Hose x MIP or FIP 1/2" and 3/4"
• Sweat: 3/4" SWT
207 Hose Bibb - No Kink - Material Specifications
| No. | Part | Material | ASTM Designation |
|---|---|---|---|
| 1 | Bolt | Hot Rolled | SAE 1010R |
| 2 | Handle | Zinc | Z30A |
| 3 | Packing Nut | Brass | C37700 |
| 4 | Packing | NBR | N57015 |
| 5 | Washer | S.S | 304/306 |
| 6 | Stem | Brass | C37700 |
| 7 | Seat Washer | NBR | N67015 |
| 8 | Seat Screw | Brass | C37700 |
| 9 | Body | Brass | B584, C85710 |
Dimensions
| Part # | Size | H | D | L |
|---|---|---|---|---|

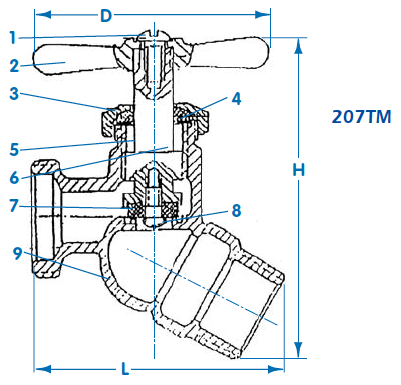

| 207TM - MIP Connection | ||||
| 207TM3 | 1/2" x 3/4" Hose | 1.69 | 2.21 | 2.44 |
| 207TM4 | 3/4" x 3/4" Hose | 1.69 | 2.21 | 2.48 |

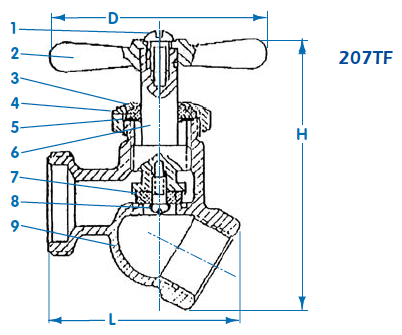

| 207TF - FIP Connection | ||||
| 207TF3 | 1/2" x 3/4" Hose | 1.69 | 2.21 | 2.01 |
| 207TF4 | 3/4" x 3/4" Hose | 1.62 | 2.21 | 2.01 |

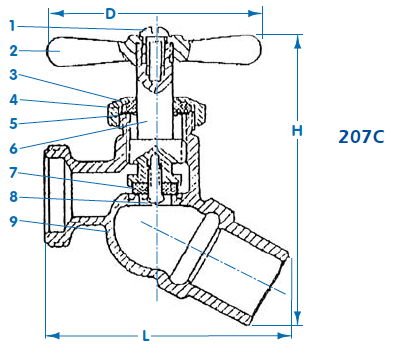

| 207CO4 - Sweat Connection | ||||
| 207C04 | 1/2" MIP x 3/4" Hose | 1.62 | 2.21 | 2.66 |
