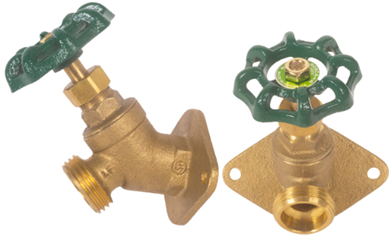

206FLF Lead Free Large Flange Sillcock - Brass Body

206FLF Lead Free Large Flange Sillcock - Brass Body

• Lead Free Brass
• Large Flange Sillcock
• 125 WOG
• ANSI/NSF 61 & ANSI/NSF 372
  (for Threaded Only)
• Max Temperature 160°F
• Hose X FIP
• Size 1/2”

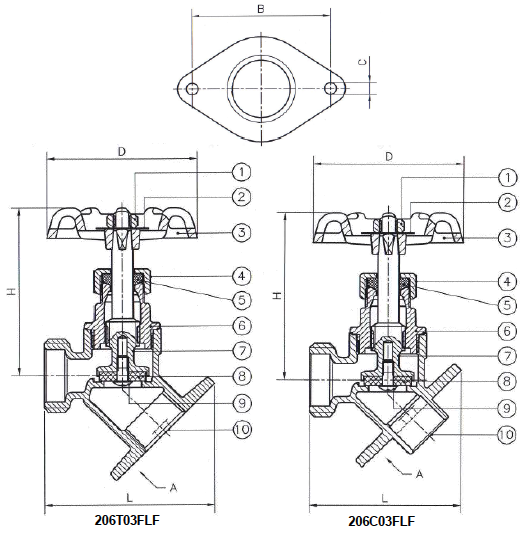

DIMENSIONS

Part # Size B C D H L
206T03FLF 1/2” Threaded 2.58 0.22 2.09 2.40 2.40
206C03FLF 1/2” Sweat 2.58 0.22 2.09 2.40 2.13


MATERIAL SPECIFICATIONS

No. Part Material
1 Nut Hot Rolled SAE 1010R
2 Name Plate Aluminum A1100
3 Handle Cast Iron JIS ZZ2202
4 Packing Nut Brass C37700
5 Packing PTFE M-392
6 Bonnet Cast Brass C46400
7 Stem Cast Brass C46400
8 Seat Packing Rubber (NBR) SN 819F
9 Screw Forged Brass C26000
10 Body Cast Brass C46400
