203IFLF Lead Free Inverted Nose Garden Valve
203IFLF Lead Free Inverted Nose Garden Valve
• Lead Free Brass
• 125 WOG
• NSF Approved
• Hose x 3/4" FIP

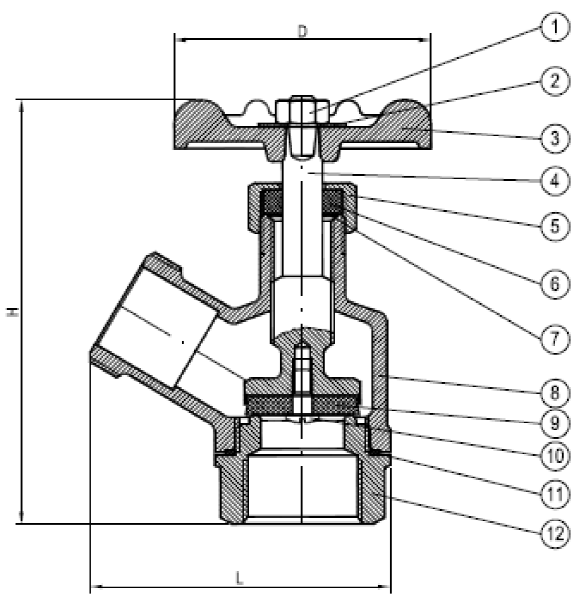

203IFLF Lead Free Inverted Nose Garden Valve - Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE. 1010R | ||||||
| 2 | Name Plate | Aluminum | ||||||
| 3 | Handle Wheel | Cast Iron | ||||||
| 4 | Stem | Brass C89550 | ||||||
| 5 | Packing Nut | Brass C89550 | ||||||
| 6 | Packing | Rubber SAE No. 1052# | ||||||
| 7 | Washer | Stainless Steel 304/306 | ||||||
| 8 | Body | Brass C89550 | ||||||
| 9 | Seat Washer | Rubber SAE No. 1052# | ||||||
| 10 | Seat Screw | Brass C89550 | ||||||
| 11 | Packing | Rubber SAE No. 1052# | ||||||
| 12 | Bonnet | Brass C89550 | ||||||
Dimensions
| Part # | Size | H | L | D | |||
|---|---|---|---|---|---|---|---|
| 203IF4LF | 3/4” X 3/4” | 3.55 | 2.36 | 2.13 | |||
