201X Brass Stop Valve with Cross Handle
201X Brass Stop Valve with Cross Handle
• 125 WOG
• Soft Seat
• Cross Handle
• Threaded or Sweat
• Threaded Ends 1/2" and 3/4"

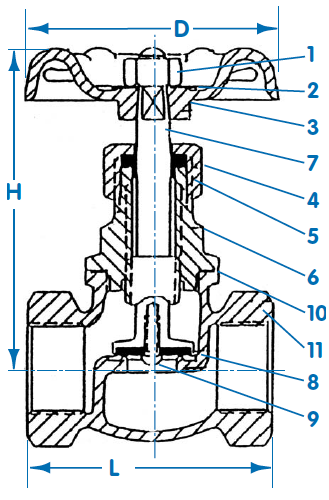

201X Brass Stop Valve with Cross Handle - Material Specifications
| No. | Part | Material | ASTM Designation |
|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled | SAE 1010R |
| 2 | Name Plate | Aluminum | A1070 |
| 3 | Handle Wheel | JIS | ZZ2202 |
| 4 | Packing Nut | Brass | C37700 |
| 5 | Packing | NBR | N67015 |
| 6 | Bonnet | Brass | B584, C85710 |
| 7 | Stem | Brass | B584, C85710 |
| 8 | Seat Washer | NBR | N67015 |
| 9 | Seat Screw | Brass | C37700 |
| 10 | Packing | NBR | N67015 |
| 11 | Body | Brass | B584, C85710 |
Dimensions
| Part # | Size | H | D | L |
|---|---|---|---|---|
| 201X03 | 1/2" | 2.42 | 2.05 | 2.09 |
| 201X04 | 3/4" | 2.42 | 2.05 | 2.19 |
