201ALF Lead Free Brass Angle Stop Valve - Globe Style
201ALF Lead Free Brass Angle Stop Valve - Globe Style
• Lead Free Brass
• 125 WOG
• Angle Stop Valve - Globe Style
• UPC & CSA Approved
• Soft Seat
• Size 1/2" Threaded or Solder Ends
201AT3LF - Threaded
201AC3LF - Sweat

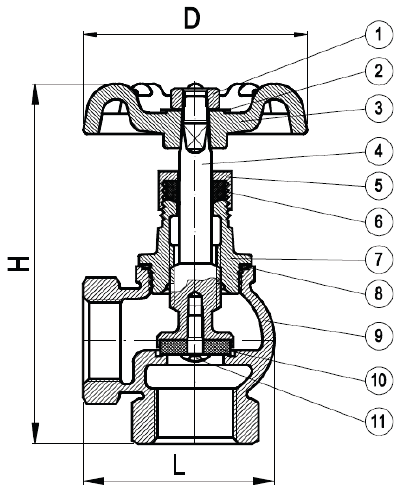

201ALF Lead Free Brass Angle Stop Valve - Globe Style - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE | |||
| 2 | Name Plate | Aluminum | |||
| 3 | Hand Wheel | Carbon Steel | |||
| 4 | Stem | Brass C46400 | |||
| 5 | Packing Nut | Brass B124 C37700 | |||
| 6 | Packing | BUNA SN-719F | |||
| 7 | Bonnet | Brass C46400 | |||
| 8 | Washer | FIBRE ‘H’ | |||
| 9 | Body | Brass C46400 | |||
| 10 | Seat Packing | BUNA SN-719F | |||
| 11 | Seat Screw | JIS H3260 C2600W | |||

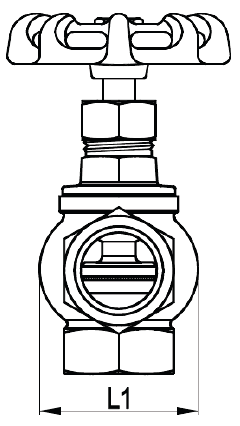

Dimensions
| Part # | Size | H | L | L1 | D | |||
|---|---|---|---|---|---|---|---|---|
| 201AT3LF | 1/2” Threaded | 3.40 | 1.81 | 1.50 | 2.11 | |||
| 201AC3LF | 1/2” Sweat | 3.18 | 1.73 | 1.18 | 2.11 | |||
