200WW Flanged Ductile Iron Gate Valve- AWWA Certified

Downloads:

Valve Catalog

200WW Flanged Ductile Iron Gate Valve- AWWA Certified

• ISO-9002
• Gate Valve-Flanged Ends
• 250 CWP-Max. Temp. 230 Deg. F.
• AWWA C550 Fusion Bonded Epoxy
• EPDM Resilient Wedge
• Non Rising S.S. Stem
• 2 Bosses
• Handwheel Standard or Operating Nut Optional
• Manufactured to AWWA C509-15
• Flanged Ends Conform with ANSI B16.1
• Open Right Available on Certain Sizes
• Sizes: 2" - 12"


Material Specifications

No Part Material
1 Valve Body Ductile Iron ASTM A536
2 Resilient Wedge Ductile Iron ASTM A536/ EPDM ASTM D2000
3 Stem Nut Bronze ASTM B584
4 Stem Stainless Steel AISI 410
5 Bonnet Ductile Iron ASTM A536
6 Stem Primary O-Ring EPDM ASTM D2000
7 Stem Gasket NYLON 1010
8 Gland Seal O-Ring EPDM ASTM D2000
9 Stem Secondary O-Ring EPDM ASTM D2000
10 Stem Seal Bushing NYLON 1010
11 Packing Gland Ductile Iron ASTM A536
12 Wiper Ring EPDM ASTM D2000
13 Operating Nut Cast Iron ASTM A126-B
14 Washer Stainless Steel AISI 410
15 Bolts Stainless Steel AISI SS304
16 Gland Bolts Stainless Steel AISI SS304
17 Bonnet Gasket EPDM ASTM D2000
18 Bonnet Bolt Stainless Steel AISI SS304

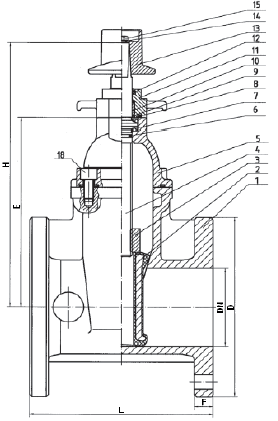

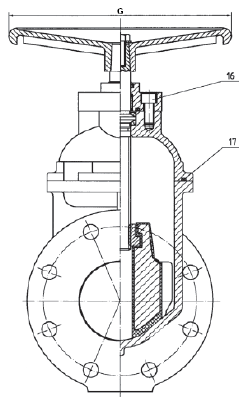

Dimensions

Part # Handwheel Part # Op. Nut Size (DN) L F D E H G
200W08W 200W08NW 2” 7.00 0.63 6.00 6.30 10.80 7.88
200W10W 200W10NW 3” 8.00 0.75 7.50 8.35 12.85 10.24
200W11W 200W11NW 4” 9.00 0.95 9.00 9.69 14.18 10.24
200W13W 200W13NW 6” 10.50 1.00 11.00 13.00 17.61 14.78
200W14W 200W14NW 8” 11.50 1.13 13.50 16.15 20.92 14.78
200W15W 200W15NW 10” 13.00 1.19 16.00 13.00 17.61 15.76
200W16W 200W16NW 12” 14.00 1.26 19.00 16.15 20.92 19.70
