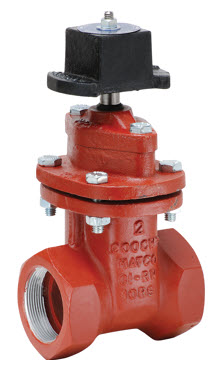

10RS Threaded Cast Iron Gate Valve

• Gate Valve-Threaded
• 200 CWP-Max. Temp. 140 Deg. F.
• C.I. Body
• Resilient Wedge
• Non Rising 304 S.S. Stem
• Full Port Flow
• Epoxy Coating
• ASTM A126 Class B
• Threaded Ends Conform to ANSI B1.20.1
• Op Nut Standard / Handwheel Optional
• Sizes 2" - 6"

* Also Available With 304SS Bolts & Nuts For Bonnet & Packing Gland
   For 2” Gate Vale Only (10RS08NS)

Material Specifications

No. Part Material
1 Body Cast Iron A 126 Class B
2 Bonnet Cast Iron A 126 Class B
3 Disc Cast Iron Rubber
(BUNA-N) A 126 Class B
4 Handwheel Cast Iron A 126 Class B
5 Stem Stainless Steel A 276 Type 304
6 Stuffing Box Cast Iron A 126 Class B
7 O-Ring A BUNA-N D 2000 BK 707
8 O-Ring B BUNA-N D 2000 BK 707
9 Bonnet Gasket BUNA-N D 2000 BK 707
10 Stem Nut Stainless Steel A 276 Type 304
11 Wiper Ring BUNA-N D 2000 BK 707
12 Bonnet Bolt & Nut Steel A 307 Grade B
13 Stud & Nut Steel A 307 Grade B
14 Handwheel Washer Steel A 284
15 Top Nut Steel A 307 Grade B
16 Operating Nut Cast Iron A 126 Class B


Dimensions

Part # Handwheel Part # Op Nut Size dØ L A B H1 H WT. LBS
10RS08 10RS08N 2” 5.00 3.63 3.13 0.63 6.94 1.81 8.50 16
10RS09 10RS09N 2-1/2” 5.50 4.31 3.75 0.63 6.94 2.16 9.06 20
10RS10 10RS10N 3” 5.94 5.00 4.31 0.69 7.13 2.50 10.25 26
10RS11 10RS11N 4” 7.50 7.06 6.06 0.81 7.88 3.53 12.50 50
10RS12 - 5” 8.25 7.94 6.88 0.88 9.88 3.97 14.56 75
10RS13 - 6” 9.06 9.44 8.19 0.94 9.88 4.72 16.81 84
