105W Flanged Cast Iron Gate Valve - OS&Y - AWWA Certified

• Gate Valve-Flanged Ends
• Resilient Wedge
• 200 CWP 3"-12", 150 CWP 14"-16"
• Max. Temp. 140 Deg. F.
• 3 Bosses w/1 Tapped and Plugged
• Fusion Bonded Epoxy Coating - AWWA C550
• In Compliance with AWWA C509
• Outside Stem & Yoke Rising Stem
• Sizes 3" - 16"

Sizes: 3" - 12" | 14" - 16"

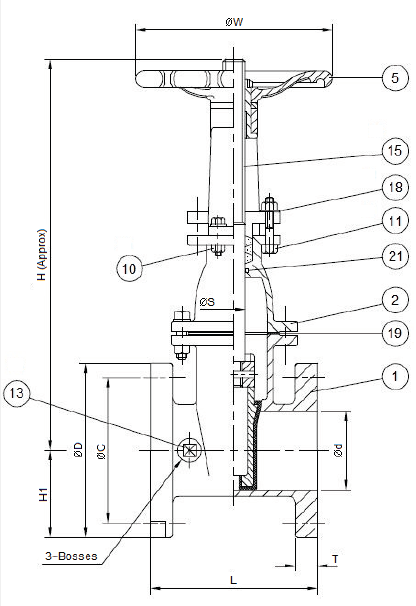

3" - 12"

Material Specifications

No. Part Material ASTM
Designation
1 Body Cast Iron A 126 Class B
2 Bonnet Cast Iron A 126 Class B
3 Disc Cast Iron & Rubber (Buna-N) A 126 Class B & D 2000 BK 707
4 Gland Ductile Iron A 536 Gr. 65-45-12
5 Hand Wheel Cast Iron A 126 Class B
6 Yoke Cast Iron A 126 Class B
7 Yoke Sleeve Brass B 21
8 Stem Nut Bronze B 62
9 Washer A Brass B 21
10 Yoke Bolt & Nut Zinc Coasted Steel A 307 Grade B
11 Gland Bolt Zinc Coasted Steel A 307 Grade B
12 Gland Nut Brass B 21
13 Plug Malleable Iron A 47
14 Pin Stainless Steel A 276 Type 304
15 Stem Brass B 16
16 Bonnet Bolt & Nut Zinc Coasted Steel A 307 Grade B
17 Hand Wheel Nut Zinc Coasted Steel A 307 Grade B
18 Washer B Zinc Coasted Steel A 36
19 Bonnet Gasket Rubber (Buna-N) D 2000 BK 707
20 Packing Braided Packing Synthetic Yarn w/ PTFE
21 O-Ring Rubber (Buna-N) D 2000 BK 707

Dimensions

Part # Size Ød L ØD ØC Øh n T ØS H H1 ØW Plug Size
105W10 3 8 7-1/2 6 3/4 4 3/4 7/8 15.20 3-3/4 7-13/16 1/2 NPT
105W11 4 9 9 7-1/2 3/4 8 15/16 1 18.78 4-1/2 9-7/8 1/2 NPT
105W13 6 10-1/2 11 9-1/2 7/8 8 1 1-1/8 24.72 5-1/2 11-13/16 3/4 NPT
105W14 8 11-1/2 13-1/2 11-3/4 7/8 8 1-1/8 1-1/4 30.55 6-3/4 14 3/4 NPT
105W15 10 13 16 14-1/4 1 12 1-3/16 1-1/2 37.36 8 15-3/4 1 NPT
105W16 12 14 19 17 1 12 1-1/4 1-1/2 42.72 9-1/2 17-3/4 1 NPT

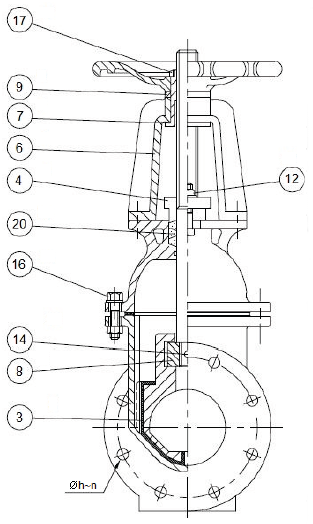

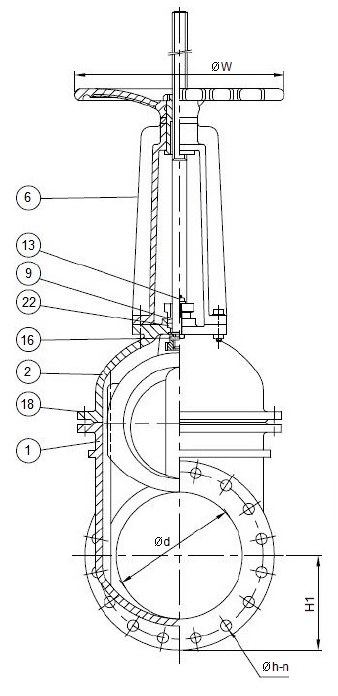

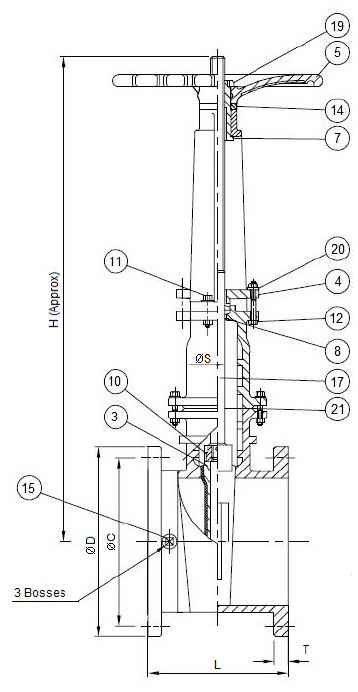

14" - 16"



Material Specificiations

No. Part Material ASTM
Designation
1 Body Cast Iron A 126 Class B
2 Bonnet Cast Iron A 126 Class B
3 Disc Cast Iron & Rubber (Buna-N) A 126 Class B & D 2000 BK 707
4 Gland Ductile Iron A 536 Gr. 65-45-12
5 Hand Wheel Cast Iron A 126 Class B
6 Yoke Cast Iron A 126 Class B
7 Yoke Sleeve Brass B 21
8 Bonnet Bushing Bronze B 62
9 Gland Bushing Bronze B 62
10 Stem Nut Bronze B 62
11 Yoke Bolt & Nut Zinc Coasted Steel A 307 Grade B
12 Gland Bolt Zinc Coasted Steel A 307 Grade B
13 Gland Nut Brass B 21
14 Hand Wheel Washer Brass B 21
15 Plug Malleable Iron A 47
16 Pin Stainless Steel A 276 Type 304
17 Stem Brass B 16
18 Bonnet Bolt & Nut Zinc Coasted Steel A 307 Grade B
19 Hand Wheel Nut Zinc Coasted Steel A 307 Grade B
20 Washer Zinc Coasted Steel A 36
21 Bonnet Gasket Rubber (Buna-N) D 2000 BK 707
22 Packing Braided Packing Synthetic Yarn w/ PTFE

Dimensions

Part # Size Ød L ØD ØC Øh n T ØS H H1 ØW Plug Size
105W17 14 15 21 18-3/4 1-1/8 12 1-3/8 1-1/2 46.19 10-1/2 17-3/4 1 NPT
105W18 16 16 23-1/4 21-1/4 1-1/8 16 1-7/16 2 53.27 11-3/4 27-9/16 1 NPT
