B6-TLO4AB - Butterfly Valve - Nickel Plated
B6-TLO4AB - Butterfly Valve - Nickel Plated
- Nickel Plated Cast Iron Butterfly Valve
- Lever Operated
- Aluminum Bronze Disc
- IPS Threaded Connection
- Max Pressure 200 PSI
- Max Temperature 200° F
- Two Disc Design, Easy to Change Valve Gasket
- Compact Construction, Optimum Design
- Size - 4"

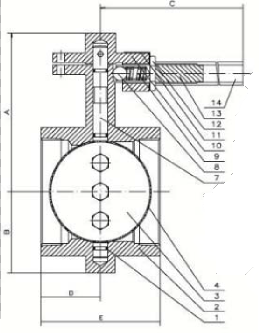

Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Stem O-Ring | Buna-N | ||||||
| 2 | Body | Cast Iron A126-84 CL B | ||||||
| 3 | Disc | Bronze C864 | ||||||
| 4 | Disc O-Ring | Buna-N | ||||||
| 5 | Disc Stud | Hex Cap Screw 304SS | ||||||
| 6 | O-Ring | Buna-N | ||||||
| 7 | Stem | 416SS | ||||||
| 8 | Handle Ball | Steel A570GR.33 | ||||||
| 9 | Handle Spring | Steel A276-92 | ||||||
| 10 | Handle | Steel A276-92 | ||||||
| 11 | Name Plate | Aluminum | ||||||
| 12 | Handle Lock Nut | Steel A570GR.33 | ||||||
| 13 | Threaded Handle Stub | Steel A570GR.33 | ||||||
| 14 | Handle | Steel A570GR.33 | ||||||
| 15 | Pin | Steel GR35(AISI 1035) | ||||||

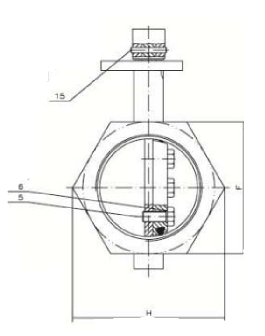

Dimensions
| Part # | Size | A | B | C | D | E | F | H | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B6-TLO4AB | 4” | 6.34 | 3.69 | 8.00 | 2.56 | 5.12 | 5.31 | 6.13 | 18 lbs | |||||
