BFP Bronze Back Flow Preventer
BFP Bronze Back Flow Preventer
• 175 PSI Max.
• 250 Deg. F. Max. Backflow Temp.
• Atmospheric Vent
• Bronze Body
• Stainless Steel Internal Parts
• Sizes 3/4" (limited stock)
**Standard Being Discontinued. Full Line Available in Lead Free. Click Here**
BFP-90KIT - COMPLETE INTERNAL REPAIR KIT AVAILABLE

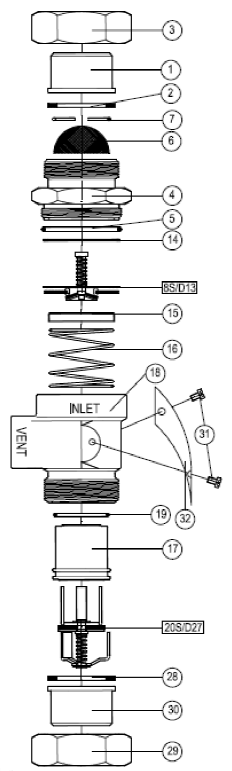

Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Nipple | Brass B124 C37700 | |||
| 2 | Packing Nipple | Fibre | |||
| 3 | Nipple Nut | Brass B124 C37700 | |||
| 4 | Bonnet | Brass B124 C37700 | |||
| 5 | O Ring Bonnet | Rubber SAE No 1052# | |||
| 6 | Filter | Stainless Steel | |||
| 7 | Snap Ring | Stainless Steel | |||
| 08-13 | Seat Packing Set | Rubber SAE No 1052# & Stainless Steel | |||
| 14 | Packing Bonnet | Fibre | |||
| 15 | Spring Cap | Stainless Steel | |||
| 16 | Spring | Stainless Steel | |||
| 17 | Seat House | Brass B124 C37700 | |||
| 18 | Body | Bronze | |||
| 19 | O Ring Seat House | Rubber SAE No 1052# | |||
| 20-27 | Seat Packing Set | Rubber SAE No 1052# & Stainless Steel | |||
| 28 | Packing Nipple | Fibre | |||
| 29 | Nipple Nut | Brass B124 C37700 | |||
| 30 | Nipple | Brass B124 C37700 | |||
| 31 | Bolt | Iron | |||
| 32 | Name Plate | Aluminium | |||
Dimensions
| Part # | Size | |
|---|---|---|
| BFP-90-3/4 | 3/4” IPS | |
| BFP-90-3/4C | 3/4” C X C | |
