BARVYN Steam Radiator Angle Valve - Brass
BARVYN Steam Radiator Angle Valve - Brass
• Steam Radiator Angle Valve Brass
• 15 WSP - 60 WOG
• FIP x Male Union
• Sizes 1" - 1-1/4"

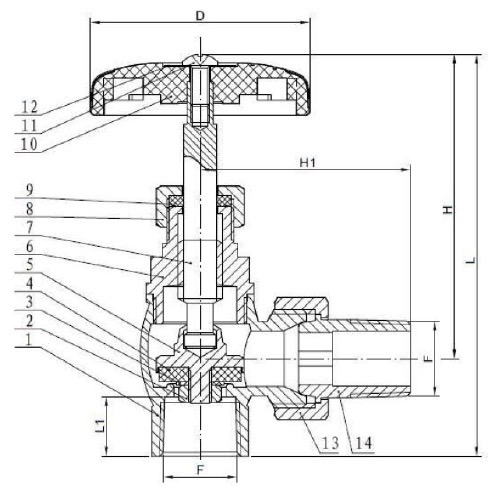

Dimensions
| Part # | Size (F) | D | H | H1 | L | L1 |
|---|---|---|---|---|---|---|
| BARVY-1001N | 1” | 2.32 | 3.15 | 2.64 | 4.35 | 0.65 |
| BARVY-1251N | 1-1/4” | 2.32 | 3.15 | 3.31 | 4.45 | 0.71 |
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Brass |
| 2 | Nut | Steel |
| 3 | Gasket | Steel |
| 4 | Gasket | EPDM |
| 5 | Seal Seat | Brass |
| 6 | Bonnet | Brass |
| 7 | Stem | Brass |
| 8 | Packing Nut | Brass |
| 9 | Filler | PTFE |
| 10 | Handle | Plastic |
| 11 | Screw | Steel |
| 12 | Dick | AL |
| 13 | Compression | Brass |
| 14 | Connector | Brass |
