29-1014LF & 29-1014CPVCLF Lead Free Straight Supply Valve CP 5/8 OD CompressionX 3/8 OD Compression
29-1014LF & 29-1014CPVCLF Lead Free Straight Supply Valve CP 5/8 OD CompressionX 3/8 OD Compression
29-1014LF
• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Straight Stop
• Temp. Rating: 32°F - 140°F
• 5/8" OD Compression X 3/8" OD Compression
29-1014CPVCLF
• Same as Above - 5/8" OD CPVC X 3/8" OD Compression
Styles: 29-1014LF Straight Supply Valve | 29-1014CPVCLF Supply Valve

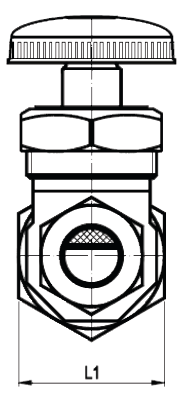

29-1014LF Straight Supply Valve
.png)
29-1014LF Straight Supply Valve - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Bolt | JIS 3260 C2600W | ||||
| 2 | Handle | Zinc Alloy Z30A | ||||
| 3 | Bonnet | Brass B124 C37700 | ||||
| 4 | Packing | EPDM SN-719F | ||||
| 5 | Washer | Stainless Steel 304 | ||||
| 6 | Stem | Plastic | ||||
| 7 | Packing Nut | Brass B124 C37700 | ||||
| 8 | Sleeve | Brass C89550 | ||||
| 9 | Seat Packing | EPDM SN-719F | ||||
| 10 | Body | Brass C89550 | ||||
| 11 | Sleeve | Brass C89550 | ||||
| 12 | Packing Nut | Brass B124 C37700 | ||||
Dimensions
| Part # | H | L | L1 | D | ||
|---|---|---|---|---|---|---|
| 29-1014LF | 2.01 | 2.26 | 0.91 | 2.02 | ||
29-1014CPVCLF Supply Valve - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Bolt | JIS 3260 C2600W | |||||
| 2 | Handle | Zinc Alloy Z30A | |||||
| 3 | Bonnet | Brass B124 C37700 | |||||
| 4 | Packing | EPDM SN-719F | |||||
| 5 | Washer | Stainless Steel 304 | |||||
| 6 | Stem | Brass C89550 | |||||
| 7 | Packing Nut | Brass B124 C37700 | |||||
| 8 | Sleeve | Brass C89550 | |||||
| 9 | Seat Packing | EPDM SN-719F | |||||
| 10 | Body | Brass C89550 | |||||
| 11 | Sleeve | Brass C89550 | |||||
| 12 | Packing CPVC | Plastic POM-M90 | |||||
| 13 | Packing Nut | Brass B124 C37700 | |||||
Dimensions
| Part # | H | L | L1 | D | ||
|---|---|---|---|---|---|---|
| 29-1014CPVCLF | 2.01 | 2.74 | 0.91 | 2.02 | ||
