Wing Nut Test Plug
Downloads:
Wing Nut Test Plug
• Wing Nut Test Plug
• Rubber Gasket
• Large Wing Nut For Easy Operation
• Engineered and Designed For Maximum Gripping Power
• Size - 1-1/2" - 6"

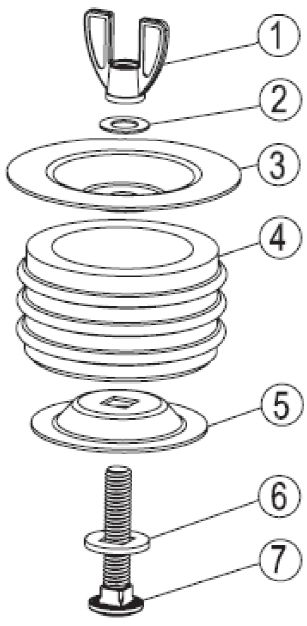

Wing Nut Test Plug - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 | Wing Nut | Aluminum | |||
| 2 | Washer | Steel | |||
| 3 | Upper Plate | Steel | |||
| 4 | Gasket | Rubber | |||
| 5 | Bottom Plate | Steel | |||
| 6 | Washer | Rubber | |||
| 7 | Bolt | Steel | |||

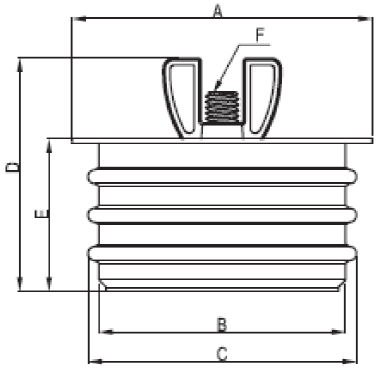

Dimensions
| Part # (C) | Size | A | B | D | E | F | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| TP-07 | 1-1/2” | 2-1/16” | 1-5/16” | 2-9/16” | 1-5/16” | 3/8”-16UNC-2A | ||||
| TP-08 | 2” | 2-1/4” | 1-11/16” | 2-9/16” | 1-5/16” | 3/8”-16UNC-2A | ||||
| TP-10 | 3” | 3-3/8” | 2-3/4” | 2-9/16” | 1-5/8” | 3/8”-16UNC-2A | ||||
| TP-11 | 4” | 4-3/16” | 3-11/16” | 2-9/16” | 1-5/8” | 3/8”-16UNC-2A | ||||
| TP-13 | 6” | 6-3/4” | 5-3/8” | 2-3/4” | 2” | 1/2”-13UNC-2A | ||||
