201XLF Lead Free Brass Stop Valve with Cross Handle

Downloads:

201XLF Lead Free Brass Stop Valve with Cross Handle

• Lead Free Brass
• ISO 9002
• NSF Approved
• Soft Seat
• Cross Handles
• Threaded Ends
• Sizes 1/2" and 3/4"

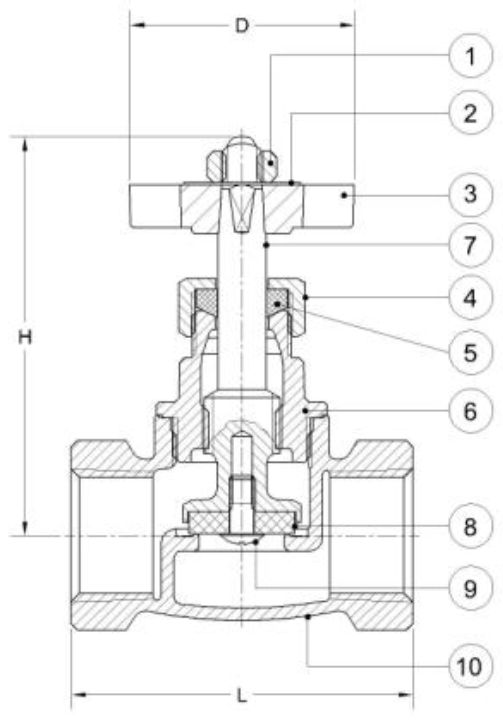

201XLF Lead Free Brass Stop Valve with Cross Handle - Material Specifications

No. Part Material
1 Wheel Nut Hot Rolled SAE. 1010R
2 Name Plate Aluminum
3 Cross Handle Brass C89550
4 Packing Nut Brass  C89550
5 Gland Packing Plastic
6 Washer Brass C89550
7 Stem Brass C89550
8 Seat Packing BUNA
9 Seat Screw Brass B19 C26000
10 Body Brass C89550

Dimensions

Part  # Size L H D
201X03LF 1/2” FIP 2.10 2.52 1.65
201X04LF 3/4” FIP 2.13 2.52 1.65
