40SSTH Stainless Steel Threaded Gate Valve

Downloads:

40SSTH Stainless Steel Threaded Gate Valve

• W.P. 200WOG
• W.T. -4°F -392°F
• 316 Stainless Steel Body
• Investment Casting
• Non-rising Stem
• Thread Type: NPT
• Sizes 1/2” - 2”

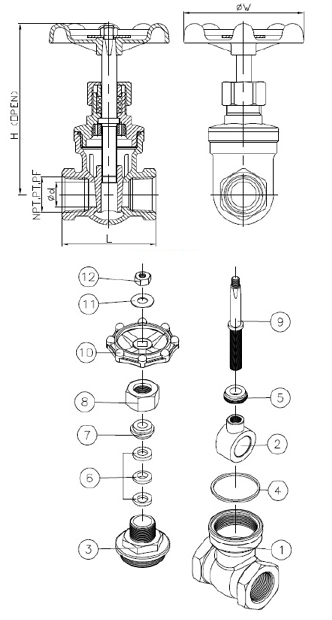

MATERIAL SPECIFICATIONS
No. Part Material
1 Body Stainless Steel 316
2 Disc Stainless Steel 316
3 Bonnet Stainless Steel 316
4 Gasket PTFE
5 Whorl Gasket Stainless Steel 304
6 Packing PTFE
7 Gland Stainless Steel 304
8 Cap Nut Stainless Steel 316
9 Stem Stainless Steel 316
10 Handle Aluminum
11 Name Plate Aluminum
12 Nut Stainless Steel 304



DIMENSIONS
Part # Size d L H W Weight (lb)
40SSTH03 1/2” 0.59 2.17 3.98 2.76 0.93
40SSTH04 3/4” 0.79 2.36 4.26 2.76 1.17
40SSTH05 1” 0.99 2.56 4.53 3.15 1.54
40SSTH06 1-1/4” 1.26 2.96 5.20 3.15 2.23
40SSTH07 1-1/2” 1.50 3.35 5.87 3.55 3.40
40SSTH08 2” 1.97 3.74 6.90 3.94 4.54
