FY-695LF Lead Free Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet

Valve Catalog

FY-695LF Lead Free Hose Bibb- Chrome Plated, Hose End Outlet, MIP Inlet

• Chrome Plated Lead Free Hose bibb
• 3/4" Hose End Outlet
• 3/4" MIP Inlet

Click Here For Standard

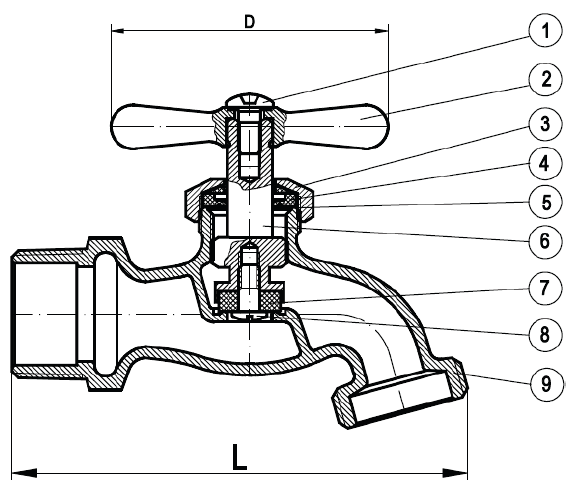

FY-695LF Lead Free Hose Bibb - Chrome Plated, Hose End Outlet, MIP Inlet - Material Specifications

No. Part Material
1 Bolt JIS G3507-1
2 Handle Zinc Z30A
3 Bonnet Brass B124 C37700
4 Packing Buna SN-719F
5 Washer Stainless Steel 304
6 Stem Brass C 46400
7 Seat Packing Buna SN-719F
8 Seat Screw JIS H3260 - C2600W
9 Body Brass C 46400

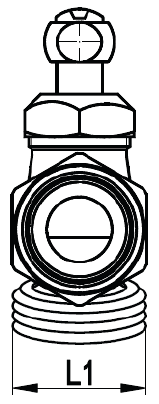

Dimensions

Part # Size H L L1 D
FY-695LF 1/2” 2.64 3.61 1.13 2.19
