FY-682LF Lead Free Hose Bibb- Chrome Plated, Hose End

Valve Catalog

FY-682LF Lead Free Hose Bibb- Chrome Plated, Hose End

• Chrome Plated Lead Free Brass Hose Bibb
• Hose End Outlet
• 1/2" MIP Inlet-Adj Flange

Click Here For Standard


FY-682LF Lead Free Hose Bibb - Chrome Plated, Hose End - Material Specifications

No. Part Material
1 Bolt JIS G3507-1
2 Handle Zinc Z30A
3 Bonnet Brass B124 C37700
4 Packing Buna SN-719F
5 Washer Stainless Steel 304
6 Stem Brass C 46400
7 Seat Packing Buna SN-719F
8 Seat Screw JIS H3260 - C2600W
9 Body Brass C 46400
10 Flange Brass B 584 C85700

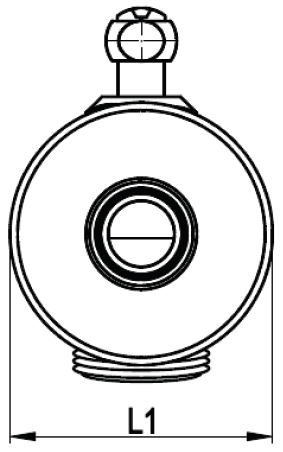

Dimensions

Part # Size H L L1 D
FY-682LF 1/2” 2.92 4.94 2.05 2.19
