AZ646RLF Lead Free Aztec Hose Bibb with Tee Handle, MIP

Valve Catalog

AZ646RLF Lead Free Aztec Hose Bibb with Tee Handle, MIP

• Lead Free Brass
• Graphite Packing
• 125 PSI
• Complies with ANSI/NSF 61 & NSF 372
• Epoxy Coated Tee Handle
• 1/2" & 3/4" MIP

Click Here For Standard

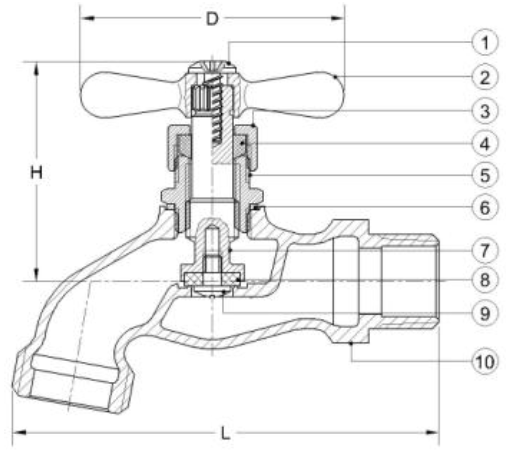

AZ646RLF Lead Free Aztec Hose Bibb with Tee Handle, MIP - Material Specifications

No. Past Material
1 Handle Bolt Stainless Steel 304
2 T-Handle Zinc
3 Packing Nut Brass C89550
4 Gland Packing Graphite
5 Bonnet Brass C89550
6 Packing Plastic
7 Stem Brass C89550
8 Seat Packing Rubber
9 Seat Screw Stainless Steel 304
10 Body Brass C89550

Dimensions

Part  # Size D H L
AZ646R03LF 1/2” MIP 2.36 1.97 3.86
AZ646R04LF 3/4” MIP 2.36 1.97 3.94
