240LF Lead Free Brass Angle Globe Valve
240LF Lead Free Brass Angle Globe Valve
• Lead Free Brass
• 200 WOG
• Angle Control Valve
• Brass Cross Handle
• Globe Pattern
• FIP 3/4" - 2"
*2" Available with Bronze Wheel Handle

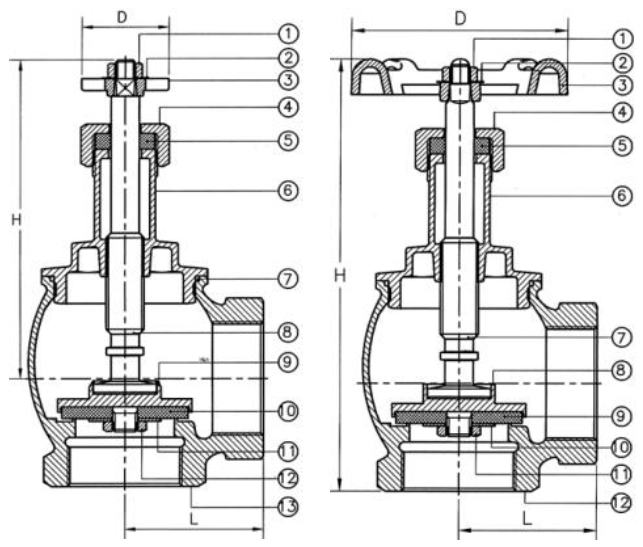

240LF Lead Free Brass Angle Globe Valve - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Brass B124 C37700 | |||||
| 2 | Name Plate | Aluminum A 1070 | |||||
| 3 | Cross Handle | Brass B584 C85700 | |||||
| 4 | Packing Nut | Brass B124 C37700 | |||||
| 5 | Packing | NBR SN-719F | |||||
| 6 | Bonnet | Brass B584 C85700 | |||||
| 7 | Washer | FIBRE “H” | |||||
| 8 | Stem | Brass C46500 | |||||
| 9 | Seat House | Brass C46500 | |||||
| 10 | Seat | NBR SN-719F | |||||
| 11 | Seat Nut -3/4" | Brass B124 C37700 | |||||
| Seat Nut -1" | Brass C46500 | ||||||
| 12 | Body | Brass C46500 | |||||
Dimensions
| Part # | Size | H | L | L1 | D | ||
|---|---|---|---|---|---|---|---|
| 240T04LF | 3/4” | 4.94 | 2.13 | 1.92 | 1.69 | ||
| 240T05LF | 1” | 5.27 | 2.63 | 2.04 | 1.69 | ||
240LF Lead Free Brass Angle Globe Valve - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE 1010R | |||||
| 2 | Name Plate | Aluminum A 1070 | |||||
| 3 | Cross Handle | Brass B584 C85700 | |||||
| Wheel Handle | Bronze B584 C84400 | ||||||
| 4 | Packing Nut | Brass B584 C85700 | |||||
| 5 | Gland Packing | Rubber (NBR) SN-919F | |||||
| 6 | Bonnet | Brass C 89550 | |||||
| 7 | Packing | FIBRE “H” | |||||
| 8 | Stem | Brass C 89550 | |||||
| 9 | Seat Holder | Brass C 89550 | |||||
| 10 | Seat Packing | Rubber (NBR) SN-919F | |||||
| 11 | Washer | Brass C 89550 | |||||
| 12 | Seat Nut | Brass C 89550 | |||||
| 13 | Body | Brass C 89550 | |||||
Dimensions
| Part # | Size | D | H | L | ||
|---|---|---|---|---|---|---|
| 240T06LF | 1-1/4” | 1.73 | 4.96 | 2.05 | ||
| 240T07LF | 1-1/2” | 1.73 | 5.44 | 2.28 | ||
| 240T08LF | 2” | 1.73 | 5.99 | 2.65 | ||
| 240T08HLF* | 2” | 4.33 | 8.55 | 2.65 | ||
