206LF Lead Free Sillcock- Brass Body

• Lead Free Brass
• ISO 9002
• 125 WOG
• Sillcock (Lawn Faucet)
• NSF, CSA & UPC Approved
• Hose x FIP
• Sizes 1/2" and 3/4"

Click Here For Standard

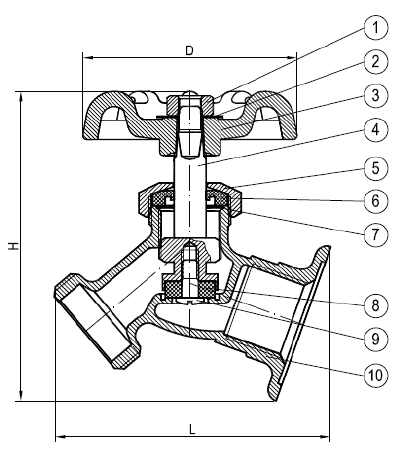

206LF Lead Free Sillcock - Brass Body - Material Specifications

No. Part Material
1 Wheel Nut Hot Rolled SAE. 1010R
2 Name Plate Aluminum
3 Handle Wheel Cast Iron
4 Packing Nut Brass B16 C36000
5 Gland Packing PTFE M-392
6 Bonnet Brass C89550
7 Stem Brass C89550
8 Seat Packing Rubber NBR SN-919F
9 Seat Screw Brass B19 C26000
10 Body Brass C89550

Dimensions

Part  # Size D H L
206T03LF 1/2” Threaded 2.08 2.40 2.25
206C03LF 1/2” Sweat 2.08 2.40 2.13
206T04LF 3/4” Threaded 2.08 2.40 2.40
206C04LF 3/4” Sweat 2.08 2.40 2.48
