203TFLF Lead Free Brass Bent Nose Garden Valve
203TFLF Lead Free Brass Bent Nose Garden Valve
• Lead Free Brass
• 125 WOG
• Hose x FIP
• NSF Approved
• Sizes 1/2" - 1"

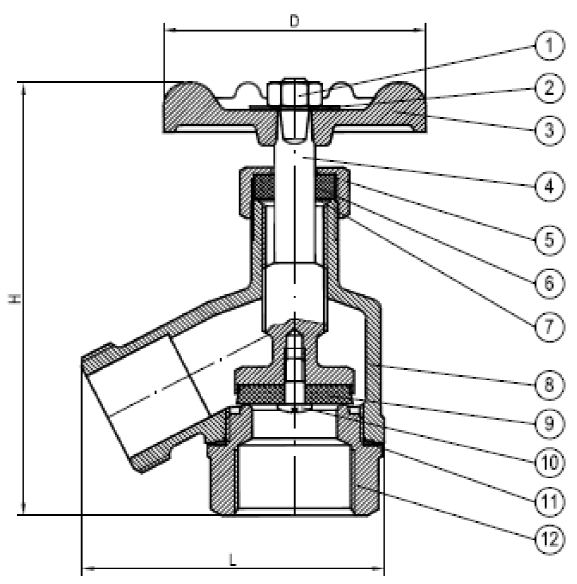

203TFLF Lead Free Brass Bent Nose Garden Valve - Material Specifications
| No. | Part | Material | ||||||
|---|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE. 1010R | ||||||
| 2 | Name Plate | Aluminum | ||||||
| 3 | Handle Wheel | Cast Iron | ||||||
| 4 | Stem | Brass C89550 | ||||||
| 5 | Packing Nut | Brass C89550 | ||||||
| 6 | Packing | Rubber SAE No. 1052# | ||||||
| 7 | Washer | Stainless Steel 304/306 | ||||||
| 8 | Body | Brass C89550 | ||||||
| 9 | Seat Washer | Rubber SAE No. 1052# | ||||||
| 10 | Seat Screw | Brass C37700 | ||||||
| 11 | Packing | Rubber SAE No. 1052# | ||||||
| 12 | Bonnet | Brass C89550 | ||||||
Dimensions
| Part # | Size | H | L | D | ||
|---|---|---|---|---|---|---|
| 203TF3LF | 1/2” | 3.50 | 2.46 | 2.13 | ||
| 203TF4LF | 3/4” | 3.52 | 2.46 | 2.13 | ||
| 203TF5LF | 1” | 3.61 | 2.56 | 2.13 | ||
