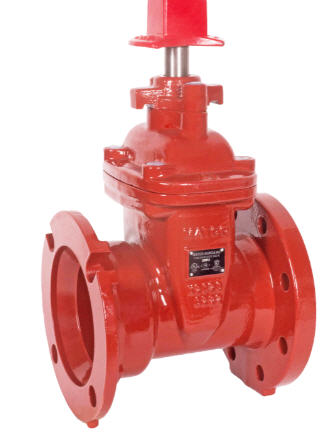

225FJR AWWA C515 Ductile Iron Flanged x MJ Valve - Open Right
225FJR AWWA C515 Ductile Iron Flanged x MJ Valve - Open Right
• Ductile Iron Gate Valve
• Flanged x MJ
• Open Right
• Resilient Wedge
• Non Rising Stem
• 300 PSI
• Temp Range of 140°F - 180°F
• AWWA C515-15
• AWWA C550 Epoxy
• UL Listed / FM Approved
• NSF-61 / NSF-372 verified by UL Water Quality
• Flanges Conform to ANSI B16.1
• Mechanical Joint Outlet Complies with ANSI C153
• Can Be Fitted With Post Indicator Plate
• Sizes 4”- 12”
DIMENSIONS
| Part # | Size | L | H | Do |
|---|---|---|---|---|
| 225FJ11R | 4" | 9.5 | 11.8 | 10.0 |
| 225FJ13R | 6" | 11.0 | 16.4 | 12.0 |
| 225FJ14R | 8" | 12.0 | 20.7 | 14.0 |
| 225FJ15R | 10" | 13.9 | 24.5 | 16.0 |
| 225FJ16R | 12" | 14.5 | 28 | 16.0 |

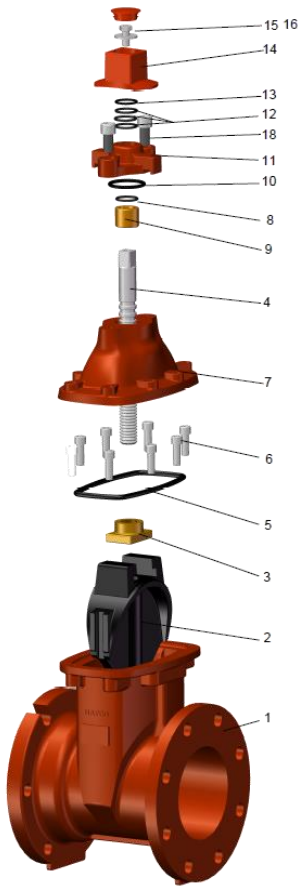

MATERIAL SPECIFICATIONS
| No. | Part | Material | ASTM Spec. |
|---|---|---|---|
| 1 | Body | Ductile Iron | A536 65-45-12 |
| 2 | Disc | Ductile Iron EPDM Encapsulated | A536 65-45-12 |
| 3 | Stem Nut | Bronze | B148 C95200 |
| 4 | Stem | Stainless Steel | A276 Type 304SS |
| 5 | Gasket | Rubber | D2000 EPDM |
| 6 | Bolt | Stainless Steel | F93 Type304SS |
| 7 | Bonnet | Ductile Iron | A536 65-45-12 |
| 8 | O-Ring | Rubber | D2000 EPDM |
| 9 | Thrust Collar | Bronze | B148 C95200 |
| 10 | O-Ring | Rubber | D2000 EPDM |
| 11 | Gland | Ductile Iron | A536 65-45-12 |
| 12 | O-Ring | Rubber | D2000 EPDM |
| 13 | Dust Ring | Rubber | D2000 EPDM |
| 14 | Operating Nut | Ductile Iron | A536 65-45-12 |
| 15 | Bolts | Stainless Steel | F93 Type304SS |
| 16 | Washer | Stainless Steel | A276 Type 304SS |
| 17 | Handwheel | Ductile Iron | A536 65-45-12 |
| 18 | Bolt | Stainless Steel | F93 Type304SS |
