115S Cast Iron Threaded Check Valve
115S Cast Iron Threaded Check Valve
• Check Valve-Threaded Ends
• 200 WOG-125 WSP
• C.I. Body, Stainless Steel Seat
• Bituminous Coating
• Bolted Bonnet
• Conforms with MSS-SP-71
• Threaded Ends Conform to ASME B1.20.1
• Sizes 2" - 6"

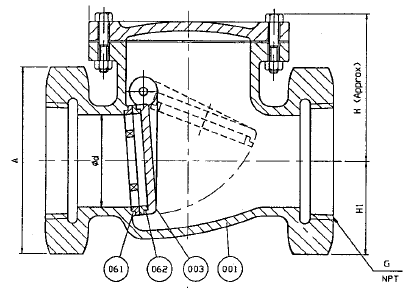

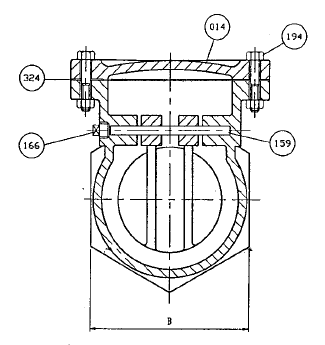

Material Specification
| No. | Part | Material | ASTM Designation | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 001 | Body | Cast Iron | A 126 Class B | |||||||||
| 003 | Disc | Ductile Iron | A 536 Gr 65-45-12 | |||||||||
| 014 | Cover | Cast Iron | A 126 Class B | |||||||||
| 061 | Body Seat Ring | Stainles Steel | A 276 Type 304 | |||||||||
| 062 | Disc Seat Ring | Stainles Steel | A 276 Type 304 | |||||||||
| 159 | Hinge Pin | Stainless Steel | A 276 Type 304 | |||||||||
| 166 | Plug | Malleable Iron | A 47 | |||||||||
| 194 | Cover Bolt & Nut | Steel | A307 Grade B | |||||||||
| 324 | Cover Gasket | Non Asbestos Sheet | Non-Asbestos | |||||||||

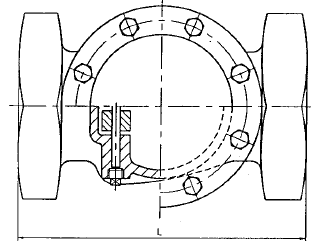

Dimensions
| Part # | SIZE INCH | L | A | B | G | H | H1 |
APPROX. WT. LBS. |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 115S08 | 2" | 7.00 | 3.63 | 3.16 | 2.00 | 4.19 | 1.81 | 14 | ||
| 115S09 | 2-1/2" | 7.50 | 4.31 | 3.75 | 2.50 | 4.94 | 2.16 | 18 | ||
| 115S10 | 3" | 9.00 | 5.00 | 4.31 | 3.00 | 5.94 | 2.50 | 27 | ||
| 115S11 | 4" | 10.50 | 7.06 | 6.13 | 4.00 | 6.69 | 3.53 | 53 | ||
| 115S12 | 5" | 11.25 | 7.94 | 6.88 | 5.00 | 7.31 | 3.97 | 69 | ||
| 115S13 | 6" | 12.50 | 9.44 | 8.19 | 6.00 | 7.69 | 4.72 | 99 | ||
