P759EXT - 759 Ball Valve Extension

P759EXT - 759 Ball Valve Extension

• Ball Valve Stem Extension

• Fits Sweat, IPS and Lead Free
• Does Not Fit the 759 Press Ball Valves

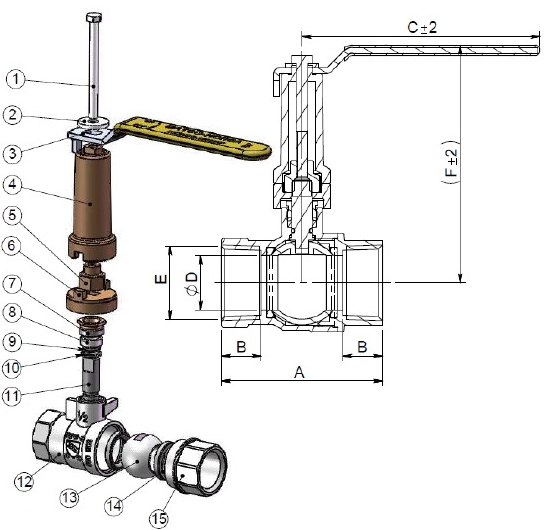

DIMENSIONS
Part # Size A B C D E F
P759EXT03 1/2” 2.05 0.55 4.14 0.51 14 NPT 3.70
P759EXT04 3/4” 2.30 0.57 4.14 0.71 14 NPT 3.95
MATERIAL SPECIFICATIONS
No. Part Material
1 Screw Steel
2 Washer Local Brass
3 Handle Steel
4 Heightened Stem Part 1 Local Brass
5 Hex-nut Local Brass
6 Heightened Stem Part 2 Local Brass
7 Packing Nut Local Brass
8 Packing Gland PTFE
9 O-Ring EPDM
10 Washer PTFE
11 Stem C36000
12 Body C37700
13 Ball Local Brass
14 Seat PTFE
15 Bonnet C37700

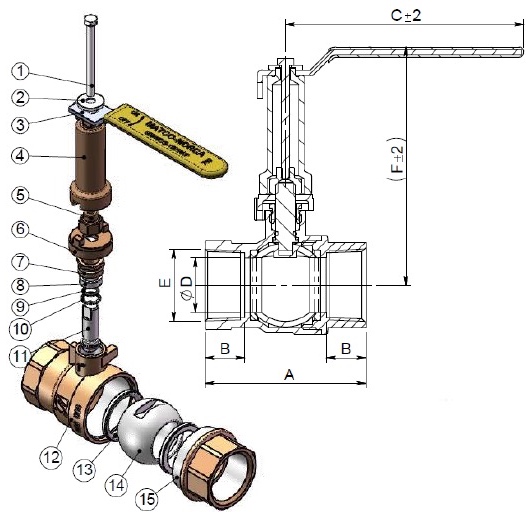

DIMENSIONS
Part # Size A B C D E F
P759EXT05 1” 2.80 0.69 4.14 0.95 11.5 NPT 4.14
P759EXT08 2” 4.20 0.75 7.09 1.95 11.5 NPT 5.44
MATERIAL SPECIFICATIONS
No. Part Material
1 Screw Steel
2 Washer Local Brass
3 Handle Steel
4 Heightened Stem Part 1 Local Brass
5 Hex-nut Local Brass
6 Heightened Stem Part 2 Local Brass
7 Packing Nut Local Brass
8 Packing Gland PTFE
9 O-Ring EPDM
10 Washer PTFE
11 Stem C36000
12 Body C37700
13 Ball Local Brass
14 Seat PTFE
15 Bonnet C37700

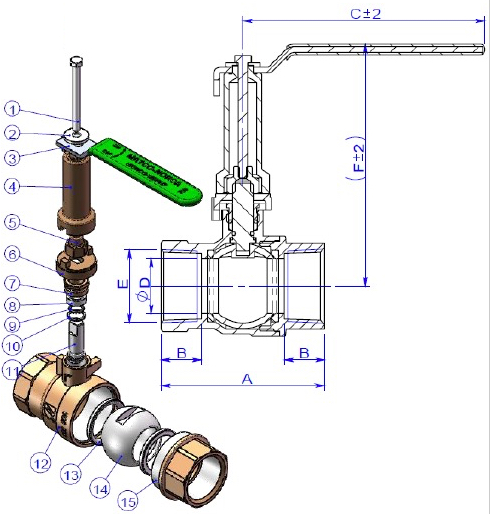

DIMENSIONS
Part # Size A B C D E F
P759EXT03LF 1/2” 2.05 0.55 3.07 0.51 14 NPT 3.70
P759EXT04LF 3/4” 2.30 0.57 4.14 0.71 14 NPT 3.95
P759EXT05LF 1” 2.80 0.69 4.14 0.95 11.5 NPT 4.14
P759EXT067LF 1-1/4” 3.15 0.69 4.93 1.20 11.5 NPT 4.72
P759EXT067LF 1-1/2” 3.51 0.71 4.93 1.46 11.5 NPT 4.89
P759EXT08LF 2” 4.20 0.75 7.09 1.95 11.5 NPT 5.44
MATERIAL SPECIFICATIONS
No. Part Material
1 Screw Steel
2 Washer Local Brass
3 Handle Steel
4 Heightened Stem Part 1 Local Brass
5 Hex-nut Local Brass
6 Heightened Stem Part 2 Local Brass
7 Packing Nut Local Brass
8 Packing Gland PTFE
9 O-Ring EPDM
10 Washer PTFE
11 Stem 1/2-1: C46500
1-1/4-2: Local Brass
12 Body C37700
13 Ball 1/2-1: C46500
1-1/4-2: AISI 304
14 Seat PTFE
15 Bonnet C37700
