214LF Boiler Drain - Quarter Turn
214LF Boiler Drain - Quarter Turn
• Lead Free Brass
• Quarter Turn
• Max Working Pressure 125 PSI
• NPT Thread Ends Conform to ANSI B1.20.1
• Hose Thread Conform to ANSI B1.20.7
• NSF 61 and NSF 372 Approved through IAPMO
• UPC, cUPC and CSA Approved
• Hose x 1/2" MIP / 1/2" Solder and 3/4" MIP
• Hose x FIP 1/2" & 3/4"

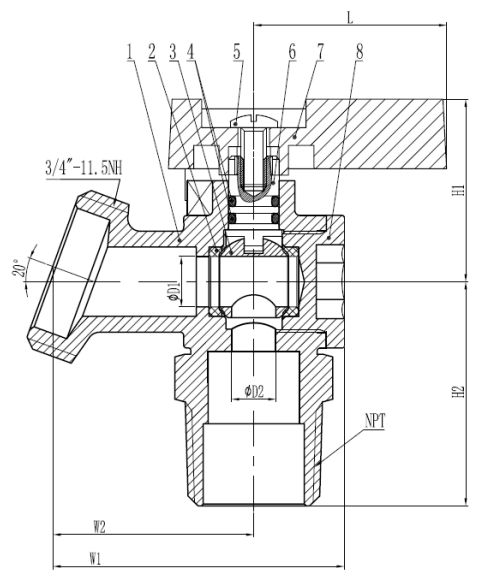

214MLF MIP Boiler Drain
Dimensions
| Part # | Size | ØD1 | ØD2 | W1 | W2 | H1 | H2 | L |
|---|---|---|---|---|---|---|---|---|
| 214M03LF* | 1/2" | 0.32 | 0.28 | 1.25 | 1.82 | 1.14 | 1.40 | 1.20 |
| 214M04LF | 3/4" | 0.32 | 0.28 | 1.25 | 1.82 | 1.14 | 1.59 | 1.20 |
* 1/2" MIP & 1/2 " SWT Inlet
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Lead Free Brass |
| 2 | Packing | PTFE |
| 3 | Ball | Lead Free Brass |
| 4 | O-Ring | NBR |
| 5 | Screw | Plated Steel |
| 6 | Stem | Brass |
| 7 | Handle | Aluminum Alloy |
| 8 | Cap | Lead Free Brass |

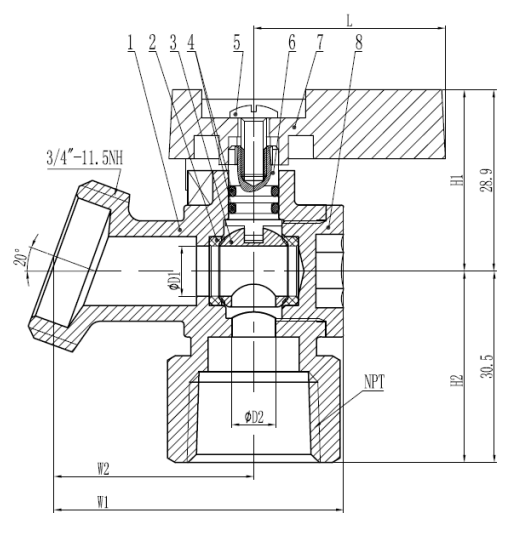

214FLF FIP Boiler Drain
Dimensions
| Part # | Size | ØD1 | ØD2 | W1 | W2 | H1 | H2 | L |
|---|---|---|---|---|---|---|---|---|
| 214F03LF | 1/2" | 0.32 | 0.28 | 1.25 | 1.82 | 1.14 | 1.20 |
1.20
|
| 214F04LF | 3/4" | 0.32 | 0.28 | 1.25 | 1.82 | 1.14 | 1.28 | 1.20 |
Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Body | Lead Free Brass |
| 2 | Packing | PTFE |
| 3 | Ball | Lead Free Brass |
| 4 | O-Ring | NBR |
| 5 | Screw | Plated Steel |
| 6 | Stem | Brass |
| 7 | Handle | Aluminum Alloy |
| 8 | Cap | Lead Free Brass |
