VTC - Vinyl Reinforced Tank Connector
Downloads:
VTC - Vinyl Reinforced Tank Connector
• 3/8" IPS x 7/8" OD
• With Celcon Nut
• cUPC Certified
VTC-0212 - 12" Long
VTC-0220 - 20" Long
• 1/2" IPS x 7/8" OD
• With Celcon Nut
• cUPC Certified
VTC-0312 - 12'" Long

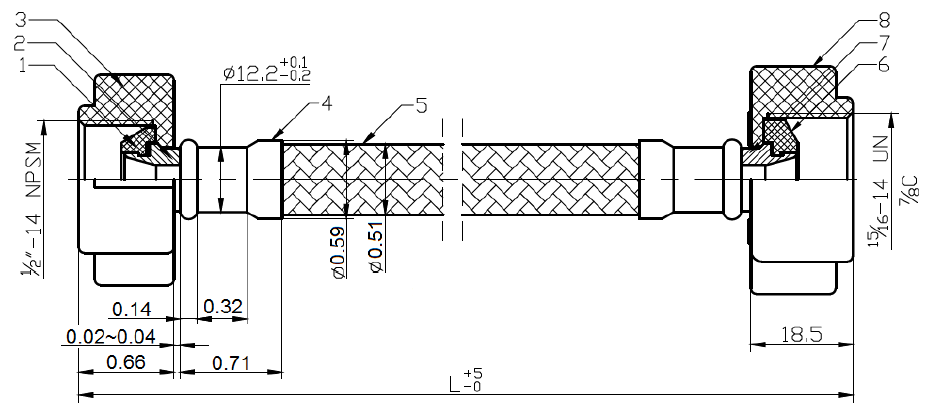

VTC - Vinyl Reinforced Tank Connector - Material Specifications
| No. | Part | Material |
|---|---|---|
| 1 | Washer | EPDM |
| 2 | Core | Brass C3600 |
| 3 | Nut | Brass HPb59-3 |
| 4 | Ferrule | Brass H62 |
| 5 | Hose | PVC |
| 6 | Washer | EPDM |
| 7 | Core | Brass C3600 |
| 8 | Nut | Brass HPb59-3 |
