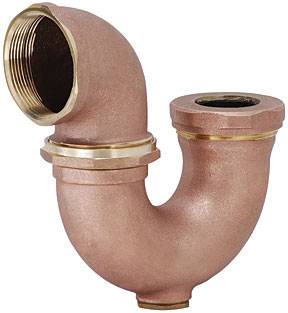

Trap N - 2" x 1- 1/2" LA Trap- IPS With Cleanout
Downloads:
Trap N - 2" x 1- 1/2" LA Trap- IPS With Cleanout
• Rough Brass
• LA Trap- IPS
• 2" x 1- 1/2"
• With Cleanout
Trap-N-CP
• Same As Above - Chrome Plated

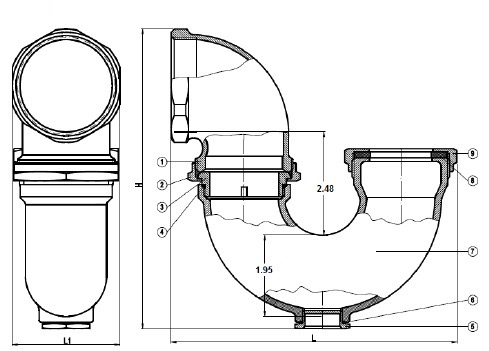

| Part # | Size | H | L | L1 |
|---|---|---|---|---|
| Trap-N | 2” FIP X 1-1/2” | 7.13 | 6.62 | 2.57 |
| No. | Part | Material |
|---|---|---|
| 1 | Body 2 | Brass B584 C85700 |
| 2 | Nipple Nut | Brass B584 C85700 |
| 3 | Nipple | Brass B584 C85700 |
| 4 | O Ring | SN-719F |
| 5 | Bonnet | Brass B124 C37700 |
| 6 | Packing | POM Formocon FM090 |
| 7 | Body 1 | Brass B584 C85700 |
| 8 | Packing | Rubber |
| 9 | Packing Nut | Brass B584 C85700 |
