SGV Steam Radiator Supply Valves - Brass
SGV Steam Radiator Supply Valves - Brass
• Stem Radiator Gate Valve
• Brass Body
• With Nut & Tailpiece
• 125 WSP-200 WOG
• Temperature Rating 300°F
• FIP x Male Union
• Sizes 1" - 1-1/4"

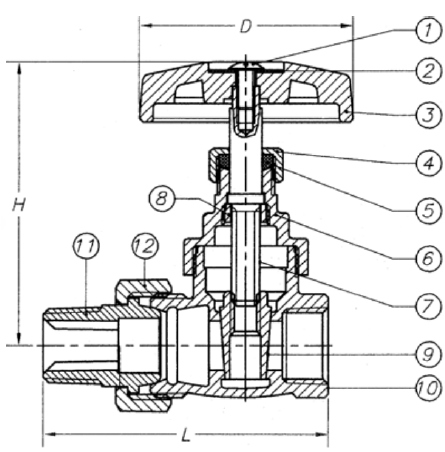

SGV Steam Radiator Supply Valves - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Handle Bolt | Hot Rolled SAE 1010R | |||||
| 2 | Name Plate | Aluminum A1100 | |||||
| 3 | Handwheel | Phenolic | |||||
| 4 | Packing Nut | Brass B16 C36000 | |||||
| 5 | Gland Packing | PTFE M-392 | |||||
| 6 | Bonnet | Brass B584 C84400 | |||||
| 7 | Stem | Brass B16 C36000 | |||||
| 8 | Locknut | Brass B16 C36000 | |||||
| 9 | Disc | Brass B584 C84400 | |||||
| 10 | Body | Brass B584 C84400 | |||||
| 11 | Nipple | Brass B584 C84400 | |||||
| 12 | Nipple Nut | Brass B584 C84400 | |||||
Dimensions
| Part # | Size | D | H | L | ||
|---|---|---|---|---|---|---|
| SGV-1001 | 1” | 2.31 | 4.04 | 3.98 | ||
| SGV-1251 | 1-1/4” | 2.31 | 4.77 | 4.45 | ||
