AZ206C034 Sillcock with Stuffing Box- SWT
AZ206C034 Sillcock with Stuffing Box- SWT
• Graphite Packing
• 125 PSI
• IAPMO & ANSI Approved
• Epoxy Coated Oval Handle
• 3/4" Cop Ftg & 1/2” Cop Swt

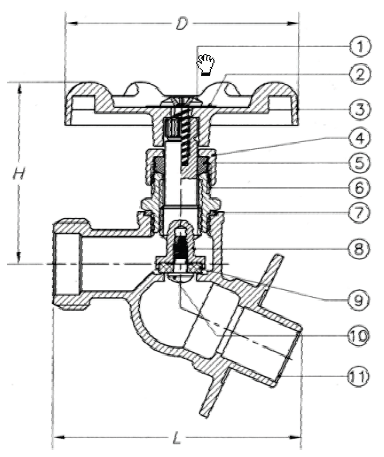

Material Specifications
| No. | Part | Material | ||
|---|---|---|---|---|
| 1 | Handle Bolt | Stainless Steel 304 | ||
| 2 | Name Plate | Aluminum A1100 | ||
| 3 | Ellipse Handle | Zinc (Z30A) | ||
| 4 | Packing Nut | Brass B16 C36000 | ||
| 5 | Gland Packing | Graphite | ||
| 6 | Bonnet | Brass B16 C36000 | ||
| 7 | Packing | POM M90 | ||
| 8 | Stem | Brass B16 C36000 | ||
| 9 | Seat Packing | Rubber (NBR) | ||
| 10 | Seat Screw | Stainless Steel 304 | ||
| 11 | Body | Brass B584 C85710 | ||
Dimensions
| Part # | Size | D | H | L | ||||
|---|---|---|---|---|---|---|---|---|
| AZ206C034 | 3/4" Cop Ftg & 1/2” Cop Swt | 2.44 | 2.21 | 2.88 | ||||
