646RLF Lead Free Hose Bibb- Cast Brass
646RLF Lead Free Hose Bibb- Cast Brass
• Lead Free Cast Brass
• 125 WOG
• Hose Bibb-Male
• NSF 61 & 372 Approved
• Hose x MIP 1/2" - 1"
• 1/2" MIP x 1/2" Solder Inlet
Replacement Handles Available
.png)

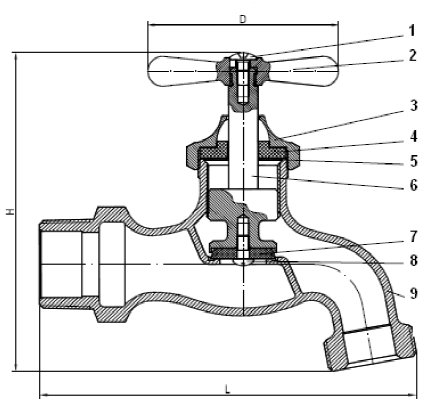

646RLF Lead Free Hose Bibb - Case Brass - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Bolt | Rod Carbon Steel SAE 106 | ||||
| 2 | Handle | Zinc | ||||
| 3 | Bonnet | Brass C89550 | ||||
| 4 | Packing | Rubber SAE 1052 | ||||
| 5 | Washer | Stainless Steel 304/306 | ||||
| 6 | Stem | Brass C89550 | ||||
| 7 | Seat Packing | Rubber SAE 1052 | ||||
| 8 | Seat Screw | Brass C89550 | ||||
| 9 | Body | Brass C89550 | ||||
Dimensions
| Part # | Size | H | L | D | Flow Rate | |||
|---|---|---|---|---|---|---|---|---|
| 646R03LF | 1/2” Male X 3/4” Hose | 2.64 | 3.61 | 2.19 | 4.0 GPM @ 40 PSI | |||
| 646R04LF | 3/4” Male X 3/4” Hose | 2.64 | 3.61 | 2.19 | 4.2 GPM @ 40 PSI | |||
| 646R05LF | 1” Male x 1” Hose | 4.63 | 5.48 | 2.76 | 4.5 GPM @ 40 PSI | |||
