519LF Lead Free Brass Compression Gate Valve
519LF Lead Free Brass Compression Gate Valve
• Brass Gate Valve
• 200 WOG
• Full Port
• Non-rising Stems
• Compression Ends - Suitable for Use w/ Copper Tubing
• Valves are Tested in Accordance with MSS-SP-82
• Valves Comply to ANSI/NSF 61 and NSF 372
• Sizes 1/2" - 1"
*Also Available w/ Compression Ends & Transition Adapter 1/2" & 3/4"

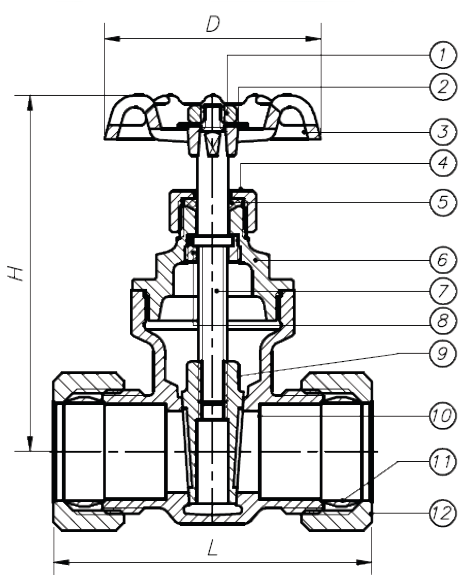

519LF Lead Free Brass Compression Gate Valve - Material Specifications
| No. | Part | Material | |||||
|---|---|---|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE 1010R | |||||
| 2 | Name Plate | Aluminum A1100 | |||||
| 3 | Handle Wheel | Cast Iron JIS ZZ2202 | |||||
| 4 | Packing Nut | Brass B16 C36000 | |||||
| 5 | Gland Packing | Graphite LK 33 NAFG | |||||
| 6 | Bonnet | Brass C89550 | |||||
| 7 | Stem | Brass C89550 | |||||
| 8 | Lock Nut | Brass C89550 | |||||
| 9 | Disc | Brass C89550 | |||||
| 10 | Body | Brass C89550 | |||||
| 11 | Sleeve | Brass C89550 | |||||
| 12 | Packing Nut | Brass B584 C85710 | |||||
Dimensions
| Part # | Size | D | H | L | ||
|---|---|---|---|---|---|---|
| 519T03LF* | 1/2” | 2.09 | 2.92 | 2.76 | ||
| 519T04LF* | 3/4” | 2.13 | 3.31 | 2.80 | ||
| 519T05LF | 1” | 2.48 | 3.90 | 3.19 | ||
* Available w/ Compression Ends & Transition Adapters
