26-1010LF & 26-1010BLF Lead Free 1/4 Turn Supply Valve 1/2 SWT X 3/8 OD Compression
26-1010LF & 26-1010BLF Lead Free 1/4 Turn Supply Valve 1/2 SWT X 3/8 OD Compression
• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Straight
• Oval Handle
• Temp. Rating: 32°F - 160°F
• 1/2" Sweat x 3/8" OD Compression
26-1000BLF
• Same as Above - Unplated Brass
.jpg)

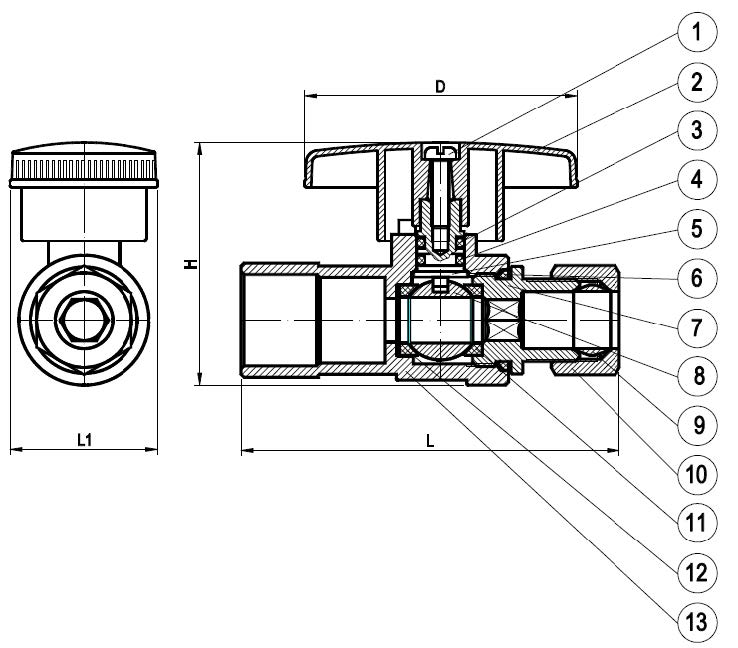

| Part # | H | L | L1 | D |
|---|---|---|---|---|
| 26-1010LF | 1.61 | 2.51 | 0.98 | 1.79 |
| 26-1010BLF | 1.61 | 2.51 | 0.98 | 1.79 |
| No. | Part | Material |
|---|---|---|
| 1 | Bolt | Rod Carbon Steel SAE 1006 |
| 2 | Handle | Zinc Alloy |
| 3 | O-Ring | EPDM SN-719F |
| 4 | O-Ring | EPDM SN-719F |
| 5 | Stem | Brass C89550 |
| 6 | O-Ring | EPDM SN-719F |
| 7 | Outlet Nut | Brass C89550 |
| 8 | Ball | Brass C89550 |
| 9 | Sleeve | Brass C89550 |
| 10 | Packing Nut | Brass B124 C37700 |
| 11 | Packing | Plastic POM-M90 |
| 12 | Packing | Plastic POM-M90 |
| 13 | Body | Brass C89550 |
