204 Boiler Drain- Less Stuffing Box
204 Boiler Drain- Less Stuffing Box
• 125 WOG
• Boiler Drain-Less Stuffing Box
• UPC & CSA Approved
• Brass Body
• Hose x FIP 1/2" & 3/4"
• Hose x MIP 1/2" & 3/4"
• 1/2" MIP x 1/2" Solder Inlet

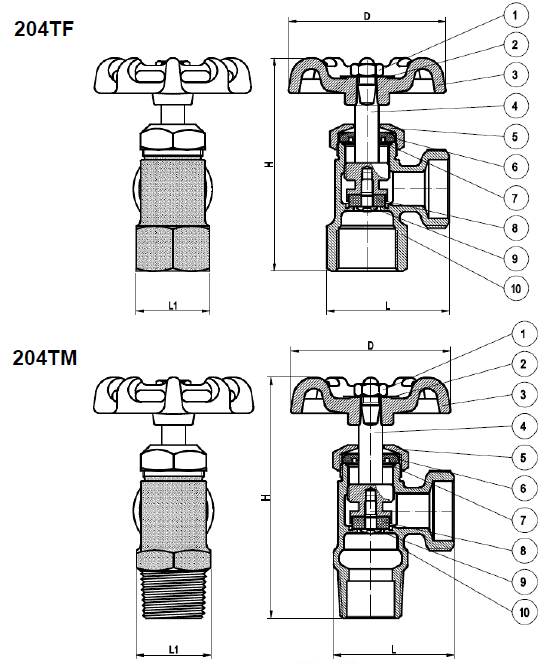

204 Boiler Drain - Less Stuffing Box - Material Specifications
| No. | Part | Material | |
|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled Wire Rods | |
| 2 | Name Plate | Aluminum A 1070 | |
| 3 | Handle Wheel | Aluminum A 383 | |
| 4 | Stem | Brass B124 C37700 | |
| 5 | Bonnet | Brass B124 C37700 | |
| 6 | Packing | SN-719F | |
| 7 | Washer | Stainless Steel 304 | |
| 8 | Seat Packing | SN-719F | |
| 9 | Seat Screw | JIS H3260 - C2600W | |
| 10 | Body | Brass B584 C85700 | |
