203TF Brass Bent Nose Garden Valve
203TF Brass Bent Nose Garden Valve
• 125 WOG
• Bent Nose-Garden Valve
• Brass Body
• Hose x FIP
• Sizes 1/2" - 1"

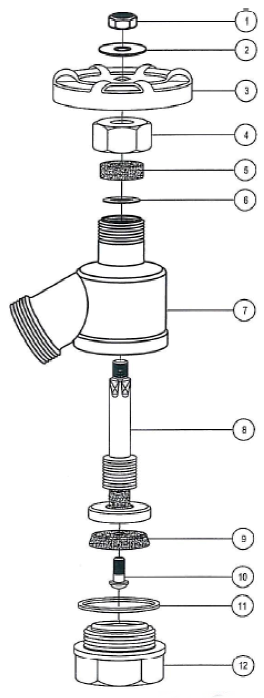

203TF Brass Bent Nose Garden Valve - Material Specifications
| No. | Part | Material | ||
|---|---|---|---|---|
| 1 | Wheel Nut | Hot Rolled SAE 1010R | ||
| 2 | Name Plate | Aluminum | ||
| 3 | Handle Wheel | Cast Iron | ||
| 4 | Packing Nut | Brass B124 C37700 | ||
| 5 | Packing | Rubber SAE No 1052# | ||
| 6 | Washer | Stainless Steel 304/306 | ||
| 7 | Body | Brass B584 C85710 | ||
| 8 | Stem | Brass B584 C85710 | ||
| 9 | Seat Packing | Rubber SAE No 1052# | ||
| 10 | Seat Screw | Brass B124 C37700 | ||
| 11 | Packing | Fibre | ||
| 12 | Bonnet | Brass B584 C85710 | ||
Dimensions
| Part # | Size | ||
|---|---|---|---|
| 203TF3 | 1/2” Female x 3/4” MHT | ||
| 203TF4 | 3/4” Female x 3/4” MHT | ||
| 203TF5 | 1” Female x 3/4” MHT |
