200RTD Ductile Iron Ring-Tite Gate Valve
200RTD Ductile Iron Ring-Tite Gate Valve
• Gate Valve with Ring-Tite Ends
• 250 CWP
• Ductile Iron Body
• Fusion Bonded Epoxy Coating
• Resilient Wedge
• Non Rising 304 S.S. Stem
• Bolted Bonnet
• 304 S.S. Bonnet & Operating Nut Bolts
• Operating Nut
• Meets AWWA C-515 standard
• Gasketed Ends for (IPS) PVC O.D. Pipe
• Sizes 2" - 12"

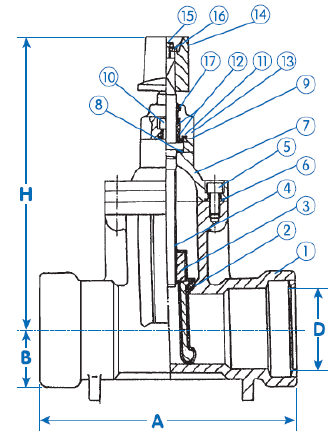

Material Specifications
| No. | Part | Material | ASTM Designation | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Body | Ductile Iron | A536 65/45/12 | ||||||||||
| 2 | Disc | Ductile Iron Rubber Encapsulated |
A536 65/45/12 / BUNA-N |
||||||||||
| 3 | Stem Nut | Bronze | B584 UNS C83600 | ||||||||||
| 4 | Stem | Stainless Steel | AISI 410 UNS S41000 | ||||||||||
| 5 | Bonnet Bolt | Stainless Steel | GR 304 | ||||||||||
| 6 | Bonnet Gasket | BUNA-N | Commercial | ||||||||||
| 7 | Bonnet | Ductile Iron | A536 65/45/12 | ||||||||||
| 8 | Split Ring | Brass | B16 UNS C36000 | ||||||||||
| 9 | Thrust Washer | Stainless Steel | GR 304 | ||||||||||
| 10 | Packing Box Bolt | Stainless Steel | GR 304 | ||||||||||
| 11 | Packing Box Gasket | BUNA-N | Commercial | ||||||||||
| 12 | O-Rings | BUNA-N | Commercial | ||||||||||
| 13 | Packing Box | Ductile Iron | A536 65/45/12 | ||||||||||
| 14 | Operating Nut | Ductile Iron | A536 65/45/12 | ||||||||||
| 15 | Top Bolt | Stainless Steel | GR 304 | ||||||||||
| 16 | Washer | Stainless Steel | AISI 410 UNS S41000 | ||||||||||
| 17 | Wiper Ring | BUNA-N | Commercial | ||||||||||
Dimensions
| PART # | SIZE | A | B | H | D |
Approx. WT. LBS |
|---|---|---|---|---|---|---|
| 200RTD08 | 2” | 10.52 | 2.36 | 9.85 | 2.48 | 28 |
| 200RTD09 | 2-1/2” | 10.76 | 2.56 | 11.07 | 2.99 | 42 |
| 200RTD10 | 3” | 10.76 | 2.96 | 12.49 | 3.62 | 44 |
| 200RTD11 | 4” | 13.75 | 3.55 | 13.36 | 4.69 | 69 |
| 200RTD13 | 6” | 16.89 | 4.73 | 16.59 | 6.76 | 119 |
| 200RTD14 | 8” | 18.51 | 5.91 | 20.76 | 8.75 | 203 |
| 200RTD15 | 10” | 21.24 | 7.09 | 24.35 | 10.91 | 278 |
| 200RTD16 | 12” | 26.48 | 8.12 | 27.58 | 12.90 | 421 |
