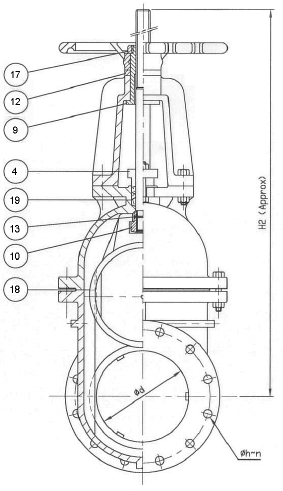

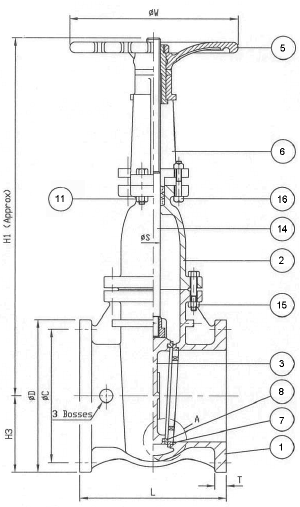

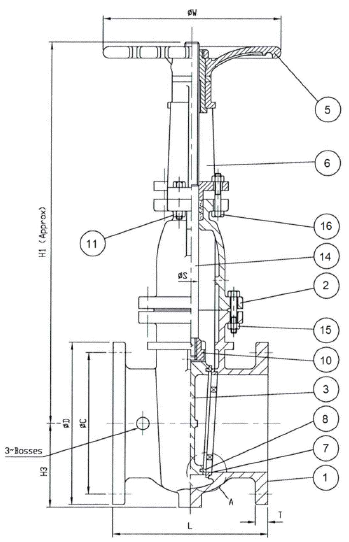

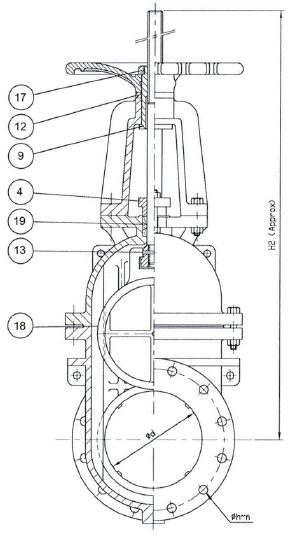

105F Flanged Cast Iron Gate Valve- OS&Y, Rising Stem

• ISO-9002
• Gate Valve-Flanged Ends
• 200 WOG-125 WSP
• Iron Body, Bronze Mounted (IBBM)
• 3 Bossings for Tapping
• Bolted Bonnet
• Outside Stem & Yoke Rising Stem
• Solid Wedge
• Conforms to MSS-SP70
• Flanged Ends Conform with ANSI B16.1
• Bituminous Coating
• Sizes 2" - 24"



Request for Information :

First Name:		Comments:
Last Name:
Title:
Company:
Email:

Leave this field empty

Downloads

105F Spec Sheet
