29-1004LF Lead Free Straight Supply Valve CP 1/2 FIP X 3/8 Compression
29-1004LF Lead Free Straight Supply Valve CP 1/2 FIP X 3/8 Compression
• Chrome Plated Lead Free Brass
• NSF & UPC Approved
• 125 PSI
• Straight
• Temp. Rating: 32°F - 140°F
• 1/2" FIP X 3/8" Compression

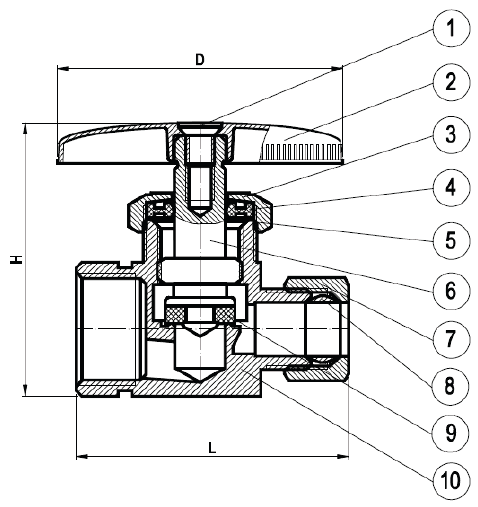

29-1004LF Lead Free Straight Supply Valve CP 1/2 FIP X 3/8 Comp - Material Specifications
| No. | Part | Material | ||||
|---|---|---|---|---|---|---|
| 1 | Bolt | JIS 3260 C2600W | ||||
| 2 | Handle | Zinc Alloy Z30A | ||||
| 3 | Bonnet | Brass B124 C37700 | ||||
| 4 | Packing | EPDM SN-719F | ||||
| 5 | Washer | Stainless Steel 304 | ||||
| 6 | Stem | Plastic | ||||
| 7 | Packing Nut | Brass B124 C37700 | ||||
| 8 | Sleeve | Brass C89550 | ||||
| 9 | Seat Packing | EPDM SN-719F | ||||
| 10 | Body | Brass C89550 | ||||

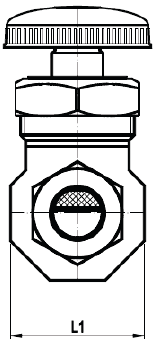

Dimensions
| Part # | H | L | L1 | D | |
|---|---|---|---|---|---|
| 29-1004LF | 1.93 | 1.93 | 0.95 | 2.02 | |
