BFPLF Lead Free Bronze Back Flow Preventer
BFPLF Lead Free Bronze Back Flow Preventer
• Lead Free Brass - IAPMO Listed
• 175 PSI Max.
• 250 Deg. F. Max. Backflow Temp.
• Atmospheric Vent
• Stainless Steel Internal Parts
• Size 1/2" & 3/4"
BFP-90KIT - COMPLETE INTERNAL REPAIR KIT AVAILABLE

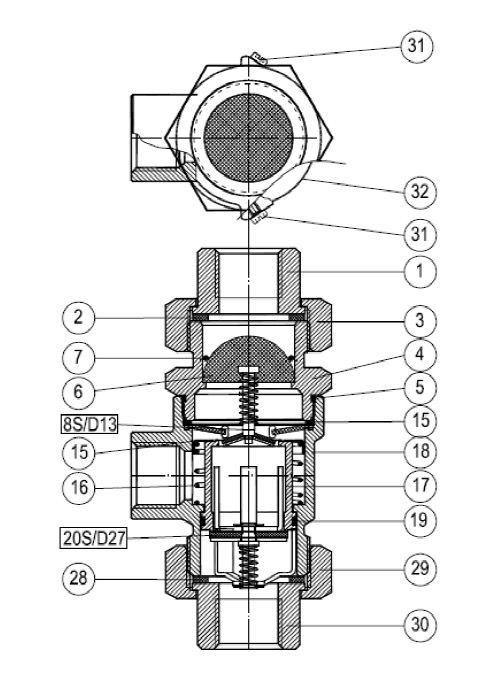

BFPLF Lead Free Bronze Back Flow Preventer - Material Specifications
| No. | Part | Material | |||
|---|---|---|---|---|---|
| 1 / 30 | Nipple | Brass C89550 | |||
| 2 / 28 | Packing Nipple | FIBRE | |||
| 3 / 29 | Nipple Nut | Brass C89550 | |||
| 4 | Bonnet | Brass C89550 | |||
| 5 | O-Ring Bonnet | Rubber SAE No 1052# | |||
| 6 | Filter | Stainless Steel 304/306 | |||
| 7 | Snap Ring | Stainless Steel 304/306 | |||
| 8S/D13 | Seat Packing Set | Rubber SAE #1052 & ST Steel | |||
| 14 | Packing Bonnet | FIBRE | |||
| 15 | Spring Cap | Stainless Steel 304/306 | |||
| 16 | Spring | Stainless Steel 304/306 | |||
| 17 | Seat House | Brass C89550 | |||
| 18 | Body | Brass C89520 | |||
| 19 | O-Ring Seat House | Rubber SAE No #1052 | |||
| 20S/D27 | Seat Packing Set | Rubber SAE #1052 & ST Steel | |||
| 31 | Bolt | Iron | |||
| 32 | Name Plate | Aluminum | |||
Dimensions
| Part # | Size | ||
|---|---|---|---|
| BFP-90-1/2LF | 1/2” IPS | ||
| BFP-90-1/2CLF | 1/2” CxC | ||
| BFP-90-3/4LF | 3/4” IPS |
